Connector End View (C1180) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1180
Description
CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LE111 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
|
|
2 |
VE736 (WH-GN) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 INT |
|
|
3 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
|
Available Pigtail Kits |
|
|

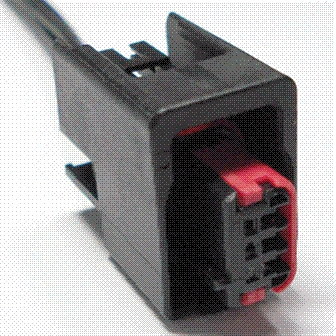

Pigtail Kit Part Number WPT-1039 |
Service Part Number: 9U2Z-14S411-AGA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Adjustable Pedal Sensor - Cam Shaft Position Sensor - Crank Shaft Position |
