Connector End View (C1127) - SIDE LAMP, LEFT FRONT
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1127
Description
SIDE LAMP, LEFT FRONT
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD129 (BK-YE) |
20 |
GROUND - HEADLAMP PANEL/GOR LEFT |
|
|
2 |
CLS06 (GN-OG) |
20 |
CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT |
|

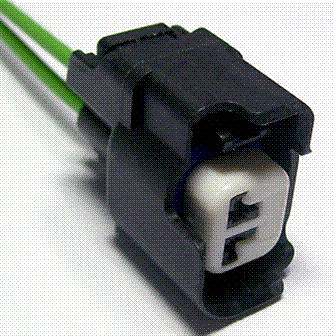

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1217 |
Service Part Number: AU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Rear Park Lamp - Reverse Lamp - Side Marker Sensor - Washer Fluid level Switch - Windshield Wiper / Washer |
