Connector End View (C710) - INLINE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline C710

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 14633

FEMALE

Harness 14A005

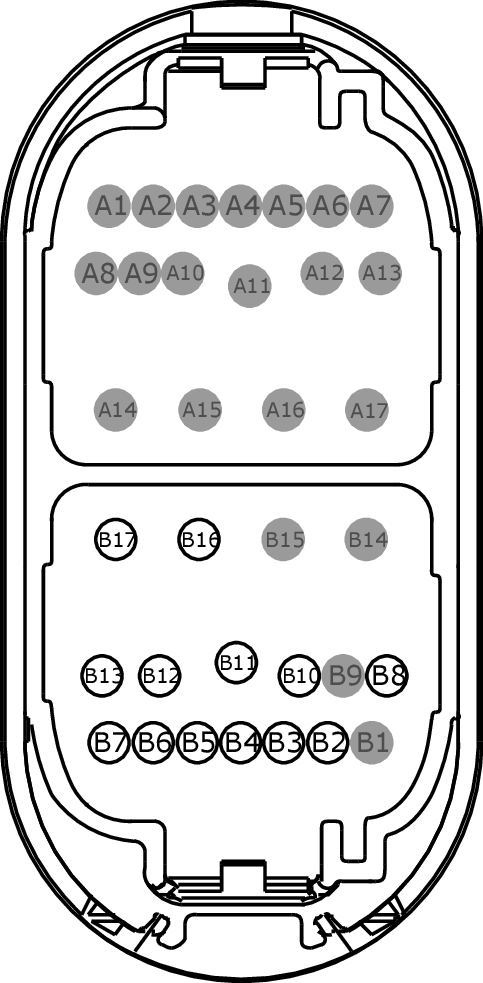

GFDW14890

Courtesy of FORD MOTOR COMPANY

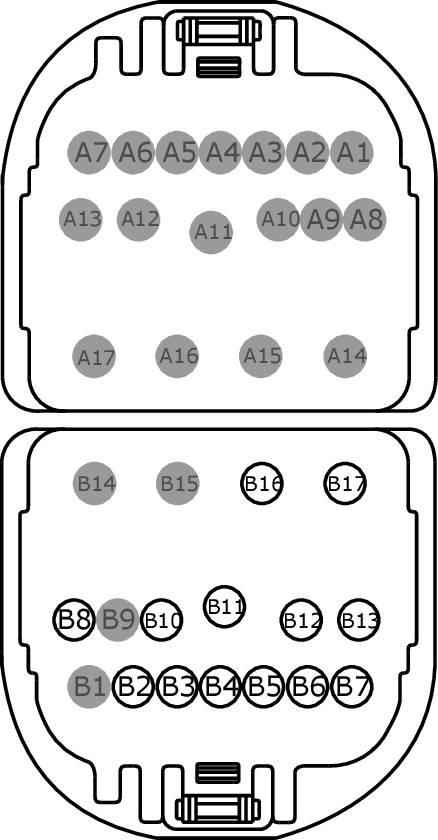

GFDW14891

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
A1	*	*
A2	*	*
A3	*	*
A4	*	*
A5	*	*
A6	*	*
A7	*	*
A8	*	*
A9	*	*
A10	*	*
A11	*	*
A12	*	*
A13	*	*
A14	*	*
A15	*	*
A16	*	*
A17	*	*
B1	*	*
B2	CPL36 (GN)	20
B3	CPL11 (GY-BN)	20
B4	CPL13 (BN-GN)	20
B5	VDN13 (BN)	20
B6	CBX07 (GN-RD)	20
B7	CPW16 (BU-OG)	20
B8	CPW14 (VT-WH)	20
B9	*	*
B10	CPW15 (YE)	20
B11	GD234 (BK-VT)	20
B12	VME09 (WH-GN)	20
B13	RME09 (BN-YE)	20
B14	*	*
B15	*	*
B16	CBP38 (GY-BU)	14

Pin	Circuit	Gauge	Qualifier
A1	*	*
A2	*	*
A3	*	*
A4	*	*
A5	*	*
A6	*	*
A7	*	*
A8	*	*
A9	*	*
A10	*	*
A11	*	*
A12	*	*
A13	*	*
A14	*	*
A15	*	*
A16	*	*
A17	*	*
B1	*	*
B2	CPL36 (GN)	26
B3	CPL11 (GY-BN)	20
B4	CPL13 (BN-GN)	20
B5	VDN13 (BN)	22
B6	CBX07 (GN-RD)	22
B7	CPW16 (VT)	26
B8	CPW14 (VT-WH)	22
B9	*	*
B10	CPW15 (YE)	26
B11	GD234 (BK-VT)	22
B12	VME09 (WH-GN)	18
B12	VME09 (WH-GN)	22
B13	RME09 (BN-YE)	18
B13	RME09 (BN-YE)	22
B14	*	*
B15	*	*
B16	CBP38 (GY-BU)	14
