Connector End View (C701) - REAR DOOR WINDOW CONTROL SWITCH LH
Connector: C701
Description
REAR DOOR WINDOW CONTROL SWITCH LH
Color
Harness
14633
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPW16 (BU-OG) |
20 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT UP |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CPW14 (VT-WH) |
20 |
SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) |
|
|
4 |
CPW15 (YE) |
20 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN |
|
|
5 |
CBP38 (GY-BU) |
14 |
FUSE - 38 OR CIRCUIT BREAKER |
|
|
6 |
CPW22 (GN-VT) |
14 |
SWITCH - POWER WINDOW REAR LEFT # UP |
|
|
7 |
CPW21 (BN) |
14 |
SWITCH - POWER WINDOW REAR LEFT # DOWN |
|
|
8 |
GD233 (BK) |
14 |
GROUND - COWL SIDE/PILLAR A LEFT |
crew cab |
|
8 |
GD347 (BK-VT) |
14 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
super cab |
|

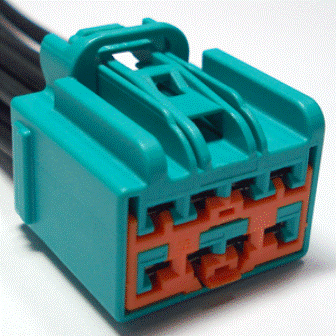

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1031 |
Service Part Number: 3U2Z-14S411-PPB Gauge: 10 12 Pin material: Tin & Silver Cavities: 8 Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat |
