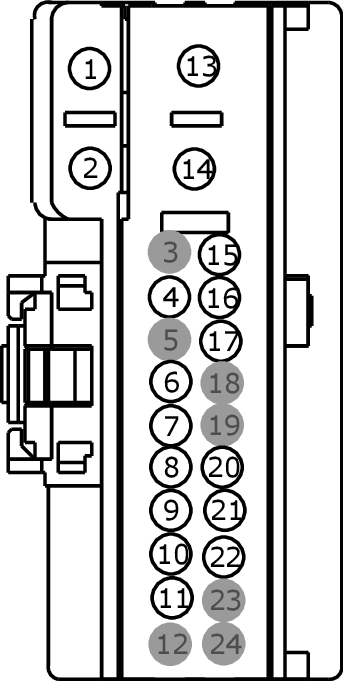

Connector End View (C652A) - PASSENGER DOOR MODULE (PDM)
Connector: C652A
Description
PASSENGER DOOR MODULE (PDM)
Color
Harness
14630
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP26 (YE-RD) |
16 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
2 |
GD238 (BK-WH) |
16 |
GROUND - COWL SIDE/PILLAR A RIGHT |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CLS26 (BU-GY) |
22 |
CTRL MOD. - TURN LAMP RIGHT MIRROR + |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
7 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
8 |
CPW20 (WH-OG) |
22 |
SWITCH - POWER WINDOW FRONT PASSENGER # UP |
|
|
9 |
CPW19 (VT) |
22 |
SWITCH - POWER WINDOW FRONT PASSENGER # DOWN |
|
|
10 |
CPL16 (YE-GN) |
22 |
SWITCH - TRIM DOOR LOCK PASSENGER # UNLOCK |
|
|
11 |
VPW39 (BU-WH) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
CPW41 (GY-YE) |
16 |
CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN |
|
|
14 |
VPW45 (GN-WH) |
16 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 |
|
|
15 |
CPL78 (VT-WH) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION |
|
|
16 |
LPW42 (VT-GY) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
|
17 |
RPW05 (GN-BN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
CPL15 (BU-GY) |
22 |
SWITCH - TRIM DOOR LOCK PASSENGER # LOCK |
|
|
21 |
VPW44 (BU-OG) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 |
|
|
22 |
RPW43 (YE-GN) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
