Connector End View (C608) - PASSENGER DOOR WINDOW REGULATOR MOTOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C608

Description

PASSENGER DOOR WINDOW REGULATOR MOTOR

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW41 (GY-YE)	16	CTRL MOD. - WINDOW MOTOR FRONT PASSENGER # DOWN
2	VPW44 (BU-OG)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1
3	LPW42 (VT-GY)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS
4	VPW45 (GN-WH)	16	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2
5	VPW39 (BU-WH)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2
6	RPW43 (YE-GN)	22	CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS

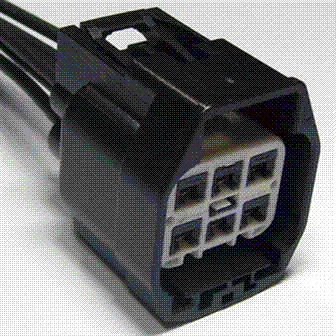

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Power Window - LH - Front

Motor - Power Window - LH - Rear

Motor - Power Window - RH - Front

Motor - Power Window - RH - Rear
