Connector End View (C604) - PASSENGER DOOR WINDOW CONTROL SWITCH

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C604

Description

PASSENGER DOOR WINDOW CONTROL SWITCH

Color

Harness

14630

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN
2	CPW20 (WH-OG)	22	SWITCH - POWER WINDOW FRONT PASSENGER # UP
3	CPW19 (VT)	22	SWITCH - POWER WINDOW FRONT PASSENGER # DOWN
4	CPL78 (VT-WH)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER ILLUMINATION
5	*	*	Not Used
6	RPW05 (GN-BN)	22	CTRL MOD. - POWER WINDOW SWITCH FRONT PASSENGER RETURN

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1028

Courtesy of FORD MOTOR COMPANY

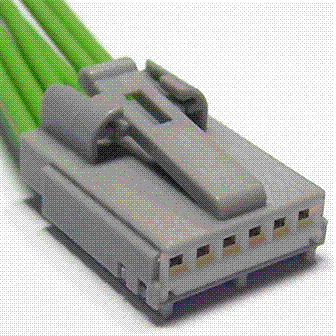

Service Part Number:

9U2Z-14S411-APA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Switch - Power Window - LH - Rear

Switch - Power Window - Passenger (Front)

Switch - Power Window - RH - Rear
