Connector End View (C510) - INLINE
Inline C510
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

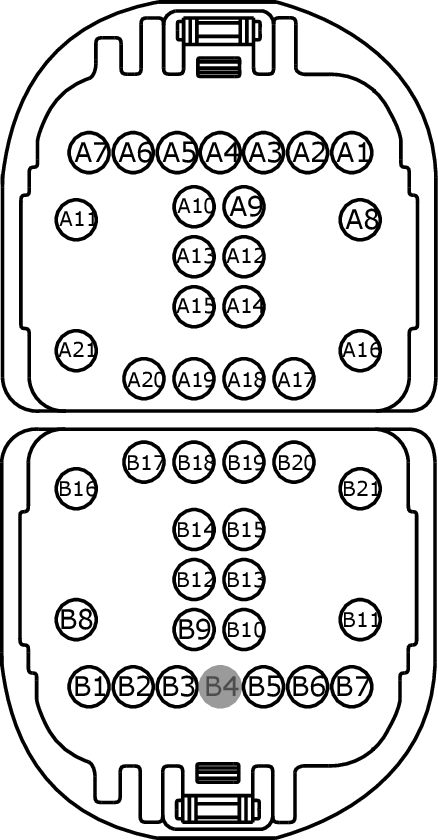

MALE
Harness 14631

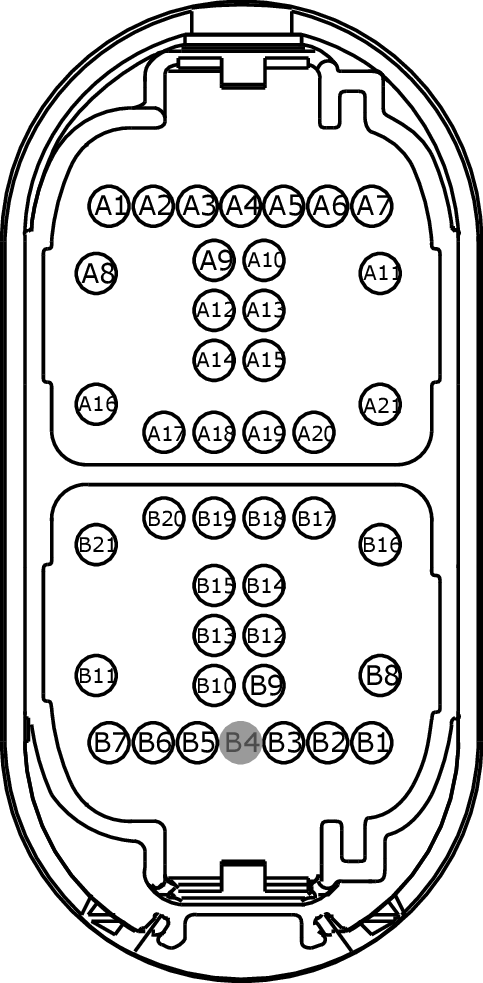

FEMALE
Harness 14A005
|
Pin |
Circuit |
Gauge |
Qualifier |
|
A1 |
CBB63 (BN-YE) |
20 |
|
|
A2 |
CBB63 (BN-YE) |
20 |
|
|
A3 |
VR236 (BU-OG) |
20 |
|
|
A4 |
RR174 (WH-OG) |
20 |
|
|
A5 |
LRD12 (BU-GY) |
20 |
|
|
A6 |
RRD12 (BN) |
20 |
|
|
A7 |
CPM43 (WH-VT) |
20 |
|
|
A8 |
VME07 (WH) |
20 |
|
|
A9 |
CPW18 (GY-VT) |
20 |
|
|
A10 |
CPW17 (BN-GN) |
20 |
|
|
A11 |
RME07 (WH-BN) |
20 |
|
|
A12 |
CPW16 (BU-OG) |
20 |
|
|
A13 |
CPW15 (YE) |
20 |
|
|
A14 |
CPM41 (VT) |
20 |
|
|
A15 |
CPM44 (GN-OG) |
20 |
|
|
A16 |
GD233 (BK) |
14 |
|
|
A16 |
GD234 (BK-VT) |
20 |
|
|
A17 |
CPL26 (GN-VT) |
20 |
|
|
A18 |
CBP23 (BN-YE) |
20 |
|
|
A19 |
CPW14 (VT-WH) |
20 |
|
|
A20 |
CPM42 (YE-OG) |
20 |
|
|
A21 |
SBP25 (RD) |
14 |
|
|
B1 |
CLF72 (BN) |
20 |
|
|
B2 |
CPL51 (BU-GN) |
20 |
|
|
B3 |
CPK30 (VT-GN) |
20 |
|
|
B4 |
* |
* |
|
|
B5 |
CPK28 (WH-GN) |
20 |
|
|
B6 |
CPK29 (GY-BU) |
20 |
|
|
B7 |
CPK31 (YE-GN) |
20 |
|
|
B8 |
VDB07 (VT-OG) |
20 |
|
|
B9 |
VDN13 (BN) |
20 |
|
|
B10 |
CBX07 (GN-RD) |
20 |
|
|
B11 |
CLS05 (BU-GY) |
20 |
|
|
B12 |
VPK01 (BN-YE) |
20 |
|
|
B13 |
RPK01 (WH-GN) |
20 |
|
|
B14 |
RPK39 (VT-OG) |
20 |
|
|
B15 |
VPK39 (GN-VT) |
20 |
|
|
B16 |
VDB06 (GY-OG) |
20 |
|
|
B17 |
DMP36 (BK) |
20 |
|
|
B18 |
VMP36 (GY) |
20 |
|
|
B19 |
VMP37 (BN-WH) |
20 |
|
|
B20 |
CMP33 (BU) |
20 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
A1 |
CBB63 (BN-YE) |
22 |
|
|
A2 |
CBB63 (BN-YE) |
22 |
|
|
A3 |
VR236 (BU-OG) |
22 |
|
|
A4 |
RR174 (WH-OG) |
22 |
|
|
A5 |
LRD12 (BU) |
26 |
|
|
A6 |
RRD12 (BN) |
26 |
|
|
A7 |
CPM43 (WH-VT) |
22 |
|
|
A8 |
VME07 (WH) |
22 |
|
|
A9 |
CPW18 (GY) |
26 |
|
|
A10 |
CPW17 (BN) |
26 |
|
|
A11 |
RME07 (WH-BN) |
22 |
|
|
A12 |
CPW16 (VT) |
26 |
|
|
A13 |
CPW15 (YE) |
26 |
|
|
A14 |
CPM41 (VT) |
22 |
|
|
A15 |
CPM44 (GN-OG) |
22 |
|
|
A16 |
GD233 (BK) |
14 |
|
|
A17 |
CPL26 (BN) |
26 |
|
|
A18 |
CBP23 (BN-YE) |
22 |
|
|
A19 |
CPW14 (VT-WH) |
22 |
|
|
A20 |
CPM42 (YE-OG) |
22 |
|
|
A21 |
SBP25 (RD) |
10 |
|
|
B1 |
CLF72 (BN) |
22 |
|
|
B2 |
CPL51 (BU-GN) |
18 |
|
|
B3 |
CPK30 (VT) |
26 |
|
|
B4 |
* |
* |
|
|
B5 |
CPK28 (WH) |
26 |
|
|
B6 |
CPK29 (GY) |
26 |
|
|
B7 |
CPK31 (GN) |
26 |
|
|
B8 |
VDB07 (VT-OG) |
22 |
|
|
B9 |
VDN13 (BN) |
22 |
|
|
B10 |
CBX07 (GN-RD) |
22 |
|
|
B11 |
CLS05 (BU-GY) |
22 |
|
|
B12 |
VPK01 (BN) |
26 |
|
|
B13 |
RPK01 (WH) |
26 |
|
|
B14 |
RPK39 (VT-OG) |
22 |
|
|
B15 |
VPK39 (GN) |
26 |
|
|
B16 |
VDB06 (GY-OG) |
22 |
|
|
B17 |
DMP36 (BK) |
20 |
|
|
B18 |
VMP36 (GY) |
26 |
|
|
B19 |
VMP37 (BN) |
26 |
|
|
B20 |
CMP33 (BU) |
26 |
