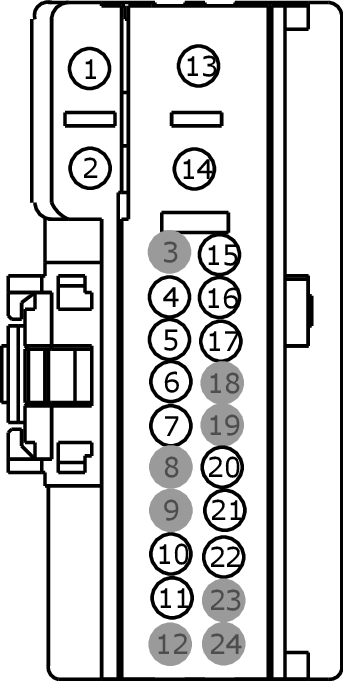

Connector End View (C501A) - DRIVER DOOR MODULE (DDM)
Connector: C501A
Description
DRIVER DOOR MODULE (DDM)
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP25 (RD) |
14 |
FUSE - 25 OR CIRCUIT BREAKER |
|
|
2 |
GD233 (BK) |
14 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CLS22 (GN-BN) |
22 |
CTRL MOD. - TURN LAMP LEFT MIRROR + |
|
|
5 |
VDN09 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE [REPLACED BY VPLA4] |
|
|
6 |
VDB07 (VT-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
7 |
VDB06 (GY-OG) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
CPL43 (VT-GY) |
22 |
SWITCH - TRIM DOOR LOCK (DRIVER) # UNLOCK |
|
|
11 |
VPW39 (BU-WH) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
CPW35 (GN) |
14 |
CTRL MOD. - WINDOW MOTOR DRIVER # DOWN |
|
|
14 |
CPW34 (BU) |
14 |
CTRL MOD. - WINDOW MOTOR DRIVER # UP |
|
|
15 |
CPL77 (BU-GN) |
22 |
CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER ILLUMINATION |
|
|
16 |
LPW36 (WH-BN) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
|
17 |
RPW03 (BU-GN) |
22 |
CTRL MOD. - POWER WINDOW SWITCH DRIVER RETURN |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
CPL42 (GY-YE) |
22 |
SWITCH - TRIM DOOR LOCK (DRIVER) # LOCK |
|
|
21 |
VPW38 (YE-BU) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 |
|
|
22 |
RPW37 (VT-GN) |
22 |
CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
