Connector End View (C462) - LICENSE PLATE LAMP, RIGHT

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C462

Description

LICENSE PLATE LAMP, RIGHT

Color

Harness

13A576

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD476 (BK-WH)	20	GROUND - FRAME REAR LEFT
2	CLS05 (BU-GY)	20	CTRL MOD. - PARK

Available Pigtail Kits

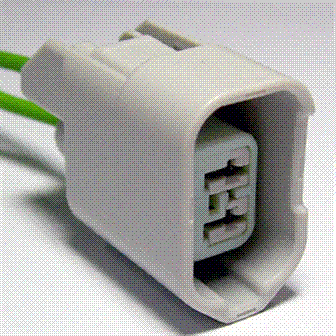

Pigtail Kit Part Number

WPT-1460

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BEC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Fog/Driving

Lamp - Front Cornering/Turn

Lamp - Front Park

Lamp - Front Turn

Lamp - Front Turn/ Marker

Lamp - Headlamp - High/Low Beam

Lamp - License

Lamp - Reverse

Lamp - Running Board

Lamp - Side Marker

Lamp - Stop/Park

Lamp - Under Hood

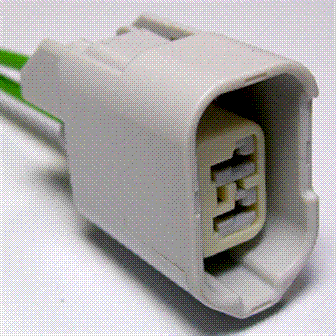

Pigtail Kit Part Number

WPT-1204

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BEB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Fog/Driving

Lamp - Front Park

Lamp - Front Turn

Lamp - Front Turn/ Marker

Lamp - License

Lamp - Reverse

Lamp - Running Board

Lamp - Side Marker

Lamp - Stop/Park

Lamp - Under Hood
