Connector End View (C435) - FUEL TANK PRESSURE (FTP) SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C435
Description
FUEL TANK PRESSURE (FTP) SENSOR
Color
BK
Harness
14405
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE922 (VT-GN) |
22 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
|
|
2 |
RE230 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
|
3 |
LE230 (BN-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
|
Available Pigtail Kits |
|
|

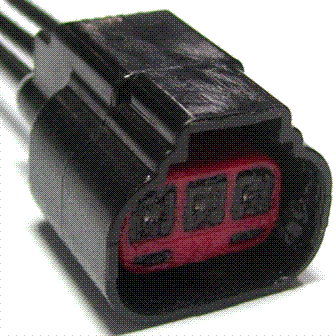

Pigtail Kit Part Number WPT-990 |
Service Part Number: 8U2Z-14S411-ZB Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure |
