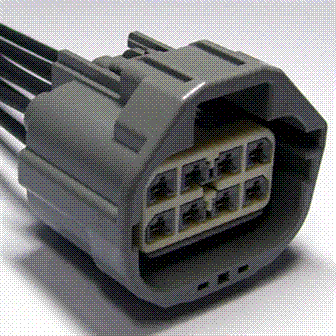

Connector End View (C433) - FUEL PUMP CONTROL MODULE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C433
Description
FUEL PUMP CONTROL MODULE
Color
Harness
14405
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBK01 (BU) |
10 |
FUSE - 1 OR CIRCUIT BREAKER (VPWR F) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
VE225 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
|
|
4 |
GD480 (BK) |
16 |
GROUND - FRAME MIDDLE LEFT |
|
|
5 |
CE515 (YE-GY) |
14 |
DRIVER - FUEL PUMP MOTOR (FPDM) + |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
VE518 (BN-WH) |
22 |
MONITOR - FUEL PUMP (FPM) |
|
|
8 |
RE515 (WH-BN) |
14 |
DRIVER - FUEL PUMP MOTOR (FPDM) - |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1332 |
Service Part Number: DU2Z-14S411-CA Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses Module - Fuel Pump Driver |
