Connector End View (C363) - DRIVER SEAT REAR HEIGHT MOTOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C363

Description

DRIVER SEAT REAR HEIGHT MOTOR

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS04 (YE-OG)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL DOWN	memory
1	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN	without memory
2	VPS11 (GN-BN)	20	SENSOR - DRIVER SEAT HEIGHT REAR / PARALLEL	memory
3	CPS05 (BU-WH)	14	CTRL MOD. - DRIVER SEAT HEIGHT REAR / PARALLEL UP	memory
3	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP	without memory
4	RPS12 (YE-VT)	20	CTRL MOD. - DRIVER SEAT SENSORS RECLINE -	memory

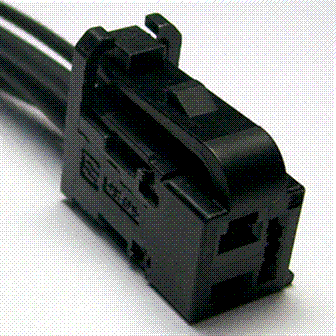

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Seat Height (Front)

Motor - Seat Recline
