Connector End View (C350) - TRANSFER CASE ASSEMBLY

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C350

Description

TRANSFER CASE ASSEMBLY

Color

Harness

15525

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCF09 (BN-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)
2	CCF03 (GY-BN)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE CLUTCH (4WDC)
3	CCF07 (BN-GN)	16	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CCW (4WDM)
4	CCF08 (GY-OG)	16	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR CW (4WDM)
5	CCF14 (GN-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)
6	CCF15 (BN-YE)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)
7	CCF16 (VT-GN)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)
8	CCF17 (WH-OG)	20	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)

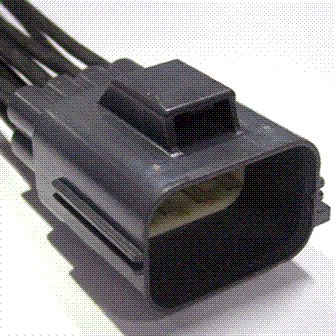

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1084

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AEA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Connector - Inline
