Connector End View (C323B) - DRIVER SAFETY BELT RETRACTOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C323B

Description

DRIVER SAFETY BELT RETRACTOR

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR120 (BU-OG)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +
2	RR120 (BN-GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

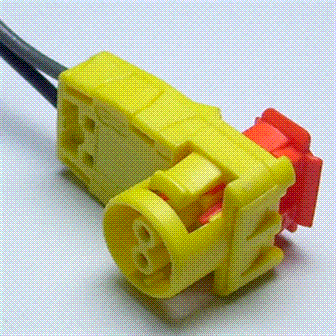

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1467

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKB

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Squib - Airbag (Driver)

Squib - Airbag (Passenger)

Pigtail Kit Part Number

WPT-1227

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
