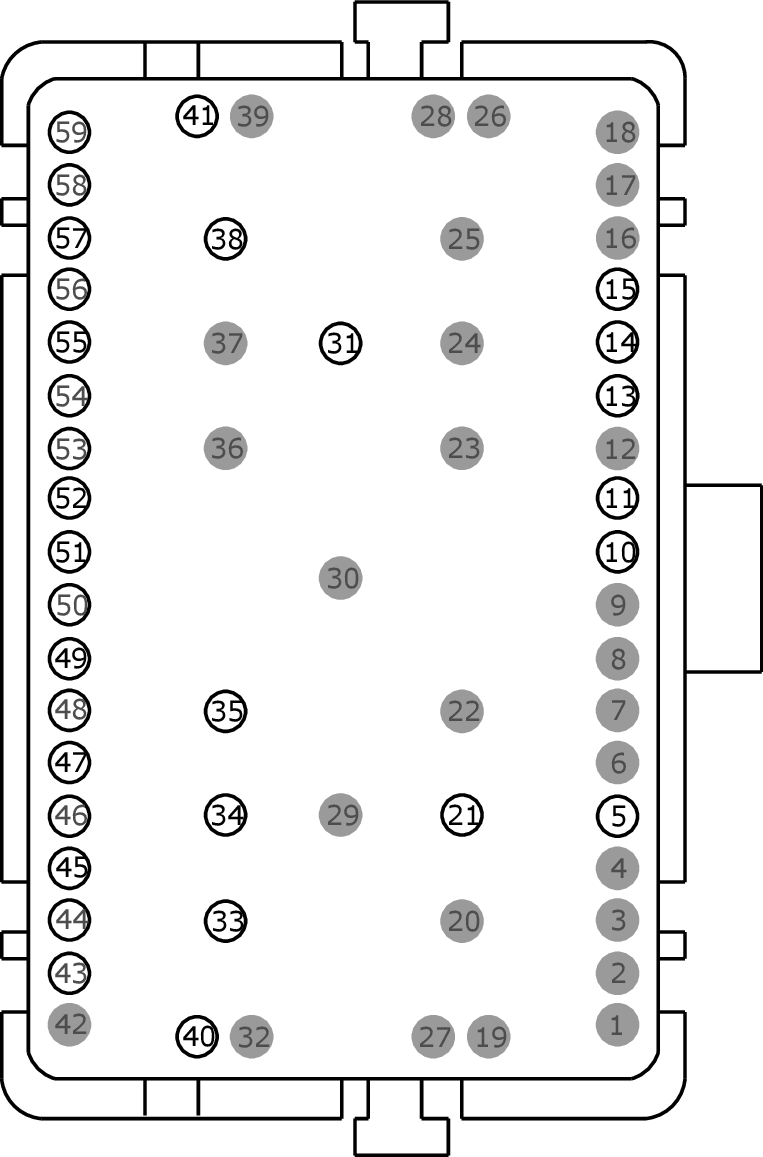

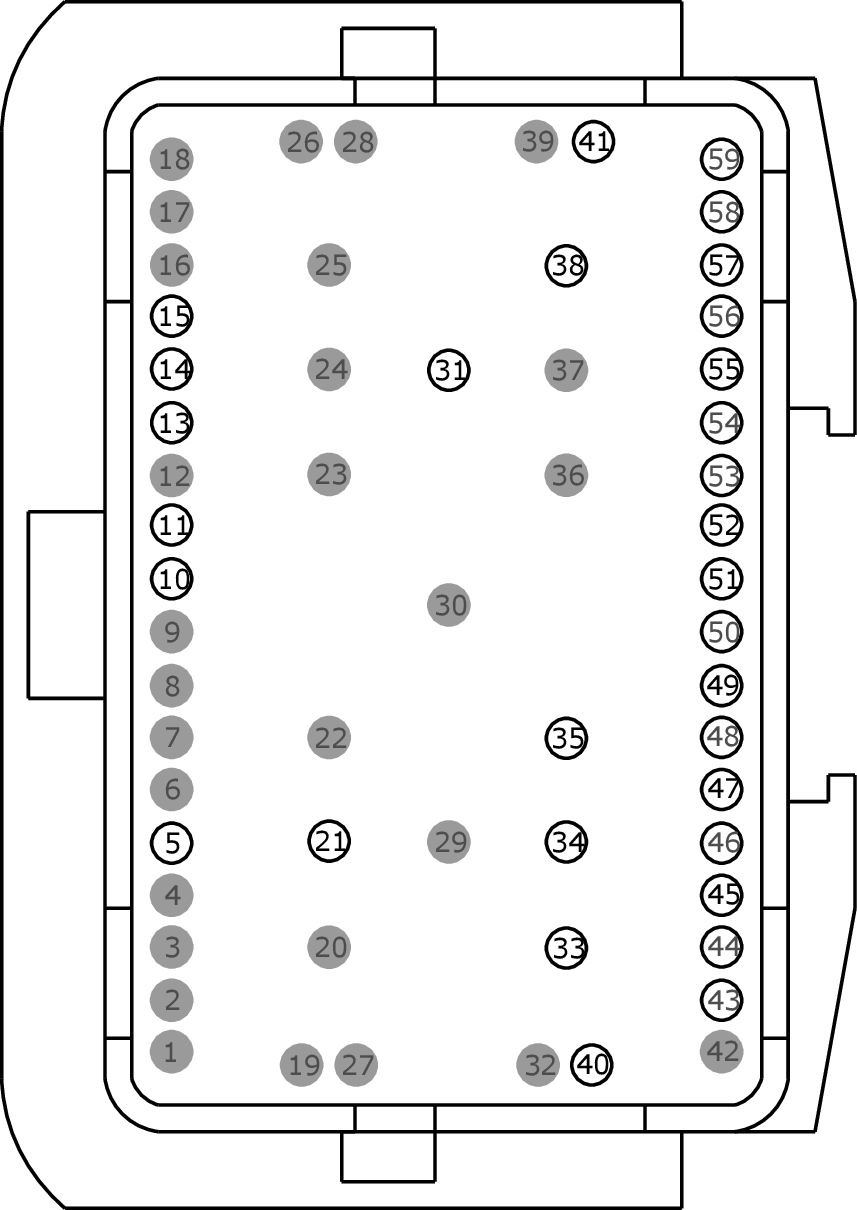

Connector End View (C313) - INLINE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline C313

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 14D231

FEMALE

Harness 14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	CBX03 (BU-RD)	20
6	*	*
7	*	*
8	*	*
9	*	*
10	VDB06 (GY-OG)	20
11	VDB07 (VT-OG)	20
12	*	*
13	CPP22 (GY-BN)	18
14	CPP04 (GY)	18
15	CPP18 (BN-VT)	20
16	*	*
17	*	*
18	*	*
19	*	*
20	*	*
21	CBX04 (WH-RD)	16
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	GD906 (BK-GY)	14
32	*	*
33	CPP01 (WH-OG)	18
34	CPP23 (VT-GY)	18
35	CPP03 (GN-VT)	18
36	*	*
37	*	*
38	CPP02 (BN)	18
39	*	*
40	CPP09 (VT-OG)	20
41	CPP10 (BN-BU)	20
42	*	*
43	*	*
44	*	*
45	RPP07 (YE-GN)	20
46	*	*
47	CBX07 (GN-RD)	20
48	*	*
49	VDN15 (BU-GY)	20
50	*	*
51	RPP06 (GN)	20
52	GD905 (BK-GN)	20
53	*	*
54	*	*
55	GD908 (BK)	20
56	*	*
57	LPP06 (YE-BU)	20
58	*	*

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	SBP02 (YE-RD)	20
6	*	*
7	*	*
8	*	*
9	*	*
10	VDB06 (GY-OG)	20
11	VDB07 (VT-OG)	20
12	*	*
13	CPP22 (GY-BN)	20
14	CPP04 (GY)	20
15	VPP08 (WH)	20
16	*	*
17	*	*
18	*	*
19	*	*
20	*	*
21	SBP02 (YE-RD)	20
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	GD233 (BK)	16
32	*	*
33	CPP01 (WH-OG)	20
34	CPP23 (VT-GY)	20
35	CPP03 (GN-VT)	20
36	*	*
37	*	*
38	CPP02 (BN)	20
39	*	*
40	CPP09 (VT-OG)	20
41	CPP10 (BN-BU)	20
42	*	*
43	*	*
44	*	*
45	VPP17 (VT-BN)	20
46	*	*
47	CBX07 (GN-RD)	22
48	*	*
49	VDN13 (BN)	20
50	*	*
51	CPP05 (WH-VT)	20
52	GD234 (BK-VT)	20
53	*	*
54	*	*
55	GD233 (BK)	20
56	*	*
57	LPP06 (YE-BU)	20
58	*	*
