Connector End View (C312) - INLINE
Inline C312
Description
INLINE
Color
BK
Base Part #
Service Pigtail
Not Available

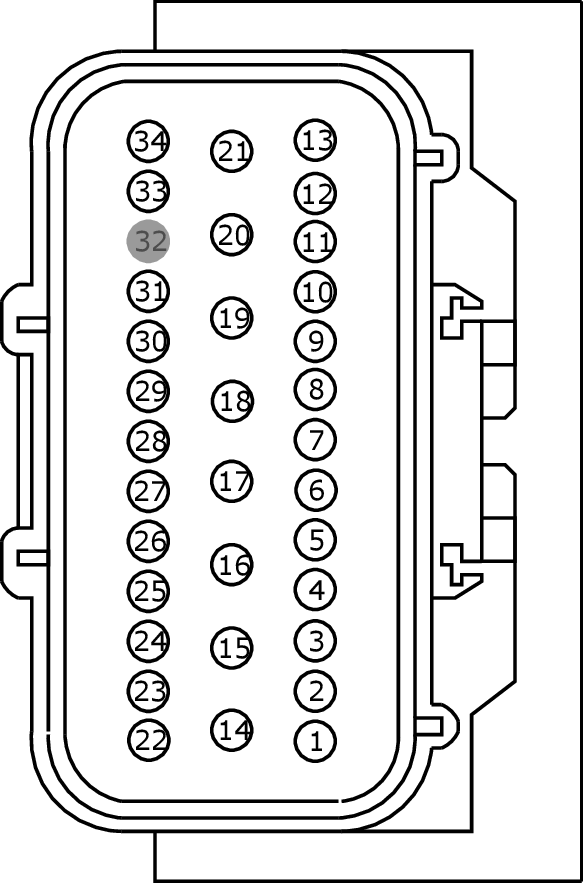

MALE
Harness 14A005

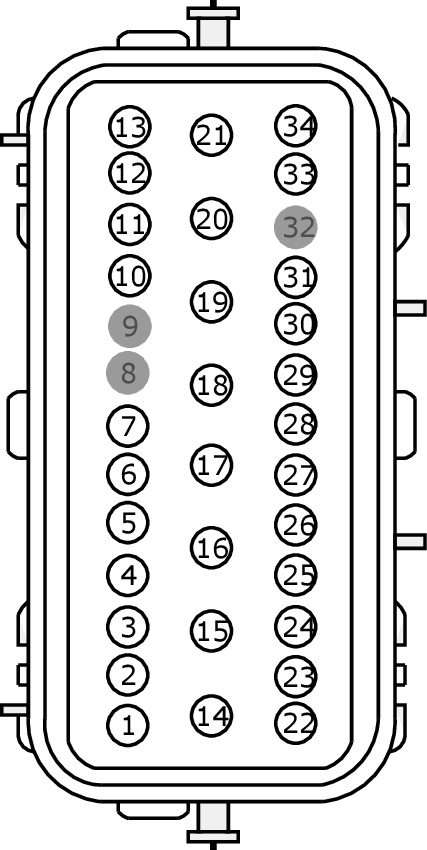

FEMALE
Harness 14D230
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CR106 (VT-GY) |
20 |
|
|
2 |
RR106 (YE-OG) |
20 |
|
|
3 |
VR216 (GN-OG) |
20 |
|
|
4 |
VDB06 (GY-OG) |
20 |
|
|
5 |
VDB07 (VT-OG) |
20 |
|
|
6 |
VDB06 (GY-OG) |
20 |
|
|
7 |
VDB07 (VT-OG) |
20 |
|
|
8 |
* |
* |
|
|
9 |
* |
* |
|
|
10 |
CR203 (GY-VT) |
20 |
|
|
11 |
VDB25 (GN-OG) |
20 |
|
|
12 |
VDB26 (GY-BU) |
20 |
|
|
13 |
CPSC8 (GN-OG) |
20 |
|
|
14 |
CHS02 (YE-BU) |
16 |
|
|
15 |
RHS02 (BU-OG) |
16 |
|
|
16 |
GD238 (BK-WH) |
16 |
|
|
17 |
RR137 (BU-GY) |
16 |
|
|
18 |
RHS01 (WH-VT) |
16 |
|
|
19 |
CHS01 (GY-VT) |
16 |
|
|
20 |
SBB28 (GN-RD) |
16 |
|
|
21 |
SBB27 (BU-RD) |
16 |
|
|
22 |
VHS26 (VT) |
20 |
|
|
23 |
RHS05 (YE-VT) |
20 |
|
|
24 |
VHS35 (VT-OG) |
20 |
|
|
25 |
RHS15 (GY-BN) |
20 |
|
|
26 |
VHS18 (BN-GN) |
20 |
|
|
27 |
VHS16 (BU-GN) |
20 |
|
|
28 |
CHS03 (GN-BN) |
20 |
|
|
29 |
RHS03 (GY-OG) |
20 |
|
|
30 |
RH111 (GY-BU) |
20 |
|
|
31 |
RHS10 (BU-OG) |
20 |
|
|
32 |
* |
* |
|
|
33 |
CHS07 (GY-BU) |
20 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CR106 (VT-GY) |
20 |
|
|
2 |
RR106 (YE-OG) |
20 |
|
|
3 |
VR215 (YE-VT) |
20 |
|
|
4 |
VDB06 (GY-OG) |
20 |
|
|
5 |
VDB07 (VT-OG) |
20 |
|
|
6 |
VDB06 (GY-OG) |
20 |
|
|
7 |
VDB07 (VT-OG) |
20 |
|
|
8 |
VR210 (BU-BN) |
20 |
|
|
9 |
LR142 (YE-BU) |
20 |
|
|
10 |
CR201 (GN-BU) |
20 |
|
|
11 |
VDB04 (WH-BU) |
20 |
|
|
12 |
VDB05 (WH) |
20 |
|
|
13 |
SBX06 (GY-RD) |
18 |
|
|
14 |
CHS02 (YE-BU) |
4 |
|
|
15 |
RHS02 (BU-OG) |
4 |
|
|
16 |
GD904 (BK-BU) |
14 |
|
|
17 |
GD901 (BK) |
16 |
|
|
18 |
RHS01 (WH-VT) |
4 |
|
|
19 |
CHS01 (GY-VT) |
4 |
|
|
20 |
CBX01 (GN-RD) |
14 |
|
|
21 |
CBX05 (VT-RD) |
14 |
|
|
22 |
VHS26 (VT) |
20 |
|
|
23 |
RHS05 (YE-VT) |
20 |
|
|
24 |
CHS14 (GN) |
20 |
|
|
25 |
CHS29 (WH-BU) |
20 |
|
|
26 |
VHS18 (BN-GN) |
20 |
|
|
27 |
CHS09 (GY) |
20 |
|
|
28 |
CHS03 (GN-BN) |
18 |
|
|
29 |
RHS03 (GY-OG) |
18 |
|
|
30 |
RHS05 (YE-VT) |
20 |
|
|
31 |
VHS26 (VT) |
20 |
|
|
32 |
* |
* |
|
|
33 |
CHS02 (YE-BU) |
16 |
