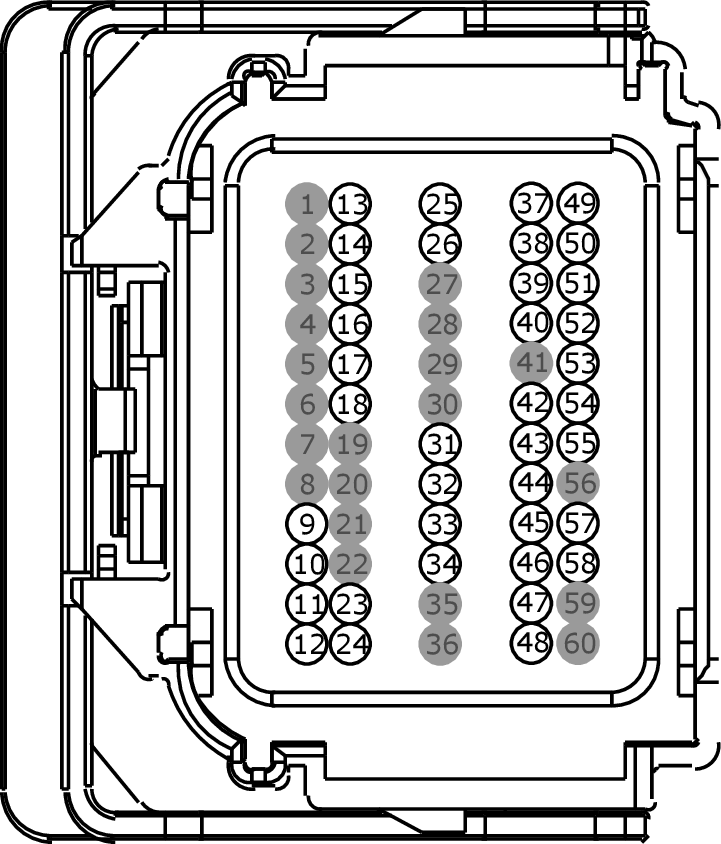

Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310B
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CR180 (YE) |
22 |
CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER + |
|
|
10 |
RR180 (BN-GN) |
22 |
CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER - |
|
|
11 |
RR181 (BU-OG) |
22 |
CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD - |
|
|
12 |
CR181 (WH) |
22 |
CTRL MOD. - INFLATABLE SEAT BELT ROW 2 PASSENGER OUTBOARD + |
|
|
13 |
CR122 (WH-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + |
|
|
14 |
RR122 (BN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - |
|
|
15 |
RR120 (BN-GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - |
|
|
16 |
CR120 (BU-OG) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + |
|
|
17 |
CR111 (BN-WH) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + |
|
|
18 |
RR111 (YE-VT) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
VR215 (YE-VT) |
20 |
SENSOR - SEAT TRACK POSITION DRIVER |
|
|
24 |
VR216 (GN-OG) |
20 |
SENSOR - SEAT TRACK POSITION FRONT PASSENGER |
|
|
25 |
CR109 (BN-BU) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + |
|
|
26 |
RR109 (BU-GN) |
20 |
CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
* |
* |
Not Used |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
RR132 (BU-WH) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT PASSENGER SIDE - |
|
|
32 |
VR218 (YE-OG) |
20 |
SENSOR - SIDE IMPACT FRONT PASSENGER SIDE |
|
|
33 |
VR217 (GY-YE) |
20 |
SENSOR - SIDE IMPACT FRONT DRIVER SIDE |
|
|
34 |
RR131 (VT-GY) |
20 |
CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
* |
* |
Not Used |
|
|
37 |
CR106 (VT-GY) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + |
|
|
38 |
RR106 (YE-OG) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - |
|
|
39 |
RR105 (GY-YE) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
|
|
40 |
CR105 (GN-BU) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + |
|
|
41 |
* |
* |
Not Used |
|
|
42 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
|
|
43 |
RR174 (WH-OG) |
22 |
CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - |
|
|
44 |
VR236 (BU-OG) |
22 |
SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE |
|
|
45 |
VR237 (BN-WH) |
22 |
SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE |
|
|
46 |
RR175 (YE-OG) |
22 |
CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE - |
|
|
47 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
|
|
48 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
|
|
49 |
CR179 (BU) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + |
|
|
50 |
RR179 (GY-BU) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - |
|
|
51 |
RR188 (WH-VT) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE - |
|
|
52 |
CR188 (VT-GN) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE + |
|
|
53 |
RR137 (BU-GY) |
22 |
CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER - |
|
|
54 |
CR201 (GN-BU) |
20 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE |
|
|
55 |
CR203 (GY-VT) |
20 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
CR206 (BN) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD |
|
|
58 |
CR204 (VT) |
22 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE |
|
|
59 |
* |
* |
Not Used |
|
|
60 |
* |
* |
Not Used |
