Connector End View (C297) - BLOWER MOTOR CONTROL MODULE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C297
Description
BLOWER MOTOR CONTROL MODULE
Color
GY
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD132 (BK-VT) |
10 |
GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
|
|
4 |
VH101 (WH-VT) |
20 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
|
Available Pigtail Kits |
|
|

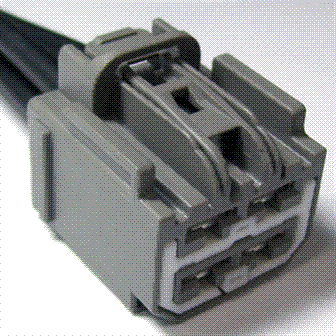

Pigtail Kit Part Number WPT-1177 |
Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses Mating Connector WPT-1408 Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
