Connector End View (C289) - AIR INLET DOOR ACTUATOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C289

Description

AIR INLET DOOR ACTUATOR

Color

Harness

19F561

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RH111 (GY-BU)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS
2	VH438 (VT)	26	SENSOR - DOOR POSITION RECIRC.
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS
4	*	*	Not Used
5	CH208 (OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)
6	CH207 (GY)	26	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)

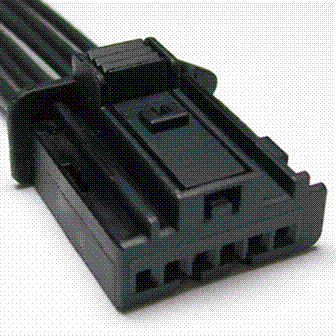

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1151

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-MA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Inlet Door
