Connector End View (C286) - AUTOLAMP/SUNLOAD SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C286
Description
AUTOLAMP/SUNLOAD SENSOR
Color
GY
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VH417 (YE) |
26 |
SENSOR - SUN LOAD # RIGHT |
|
|
2 |
VLF14 (BU) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
|
|
3 |
VH416 (VT) |
26 |
SENSOR - SUN LOAD # LEFT |
|
|
4 |
RLF14 (GY) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1013 |

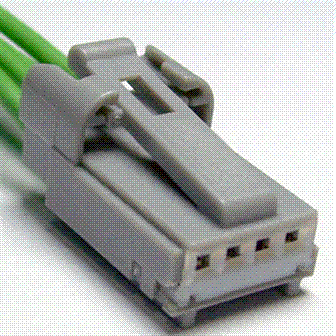

Service Part Number: 9U2Z-14S411-TA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Auto Lamps Sensor - Sunload |
