Connector End View (C284) - MODE SELECT SWITCH (MSS)

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C284

Description

MODE SELECT SWITCH (MSS)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
2	RCF13 (BN)	26	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) -+
3	CCF13 (WH)	26	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) +
4	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
5	CCF32 (GN)	26	SWITCH - LOCKER MODE
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used

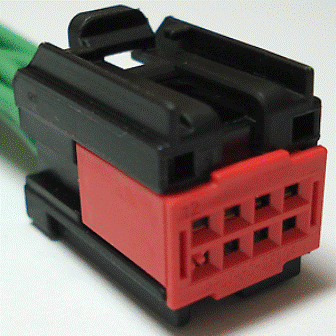

Available Pigtail Kits

Pigtail Kit Part Number

WPT-995

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BGB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Dimmer Switch

Switch - 4x4 Control

Switch - Adjustable Pedal

Switch - Center Stack (Multipurpose)

Switch - Dimmer

Switch - Hazard Warning

Switch - Moon Roof/Sun Roof

Switch - Multifunction

Switch - Multifunction (Wiper)

Switch - Seat (3rd Row)

Switch - Third Row Power Folding Seat

Switch - Traction Control
