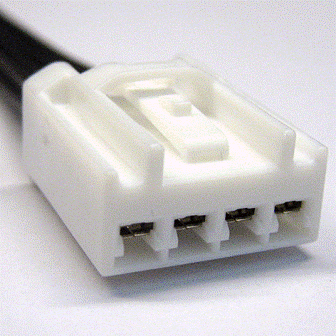

Connector End View (C278) - BRAKE PEDAL POSITION (BPP) SWITCH
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C278
Description
BRAKE PEDAL POSITION (BPP) SWITCH
Color
GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP14 (BN-RD) |
22 |
FUSE - 14 OR CIRCUIT BREAKER |
|
|
2 |
CES09 (VT-OG) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
|
|
3 |
GD233 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
|
4 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
