Connector End View (C275) - INLINE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline C275

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 12A581

FEMALE

Harness 14405

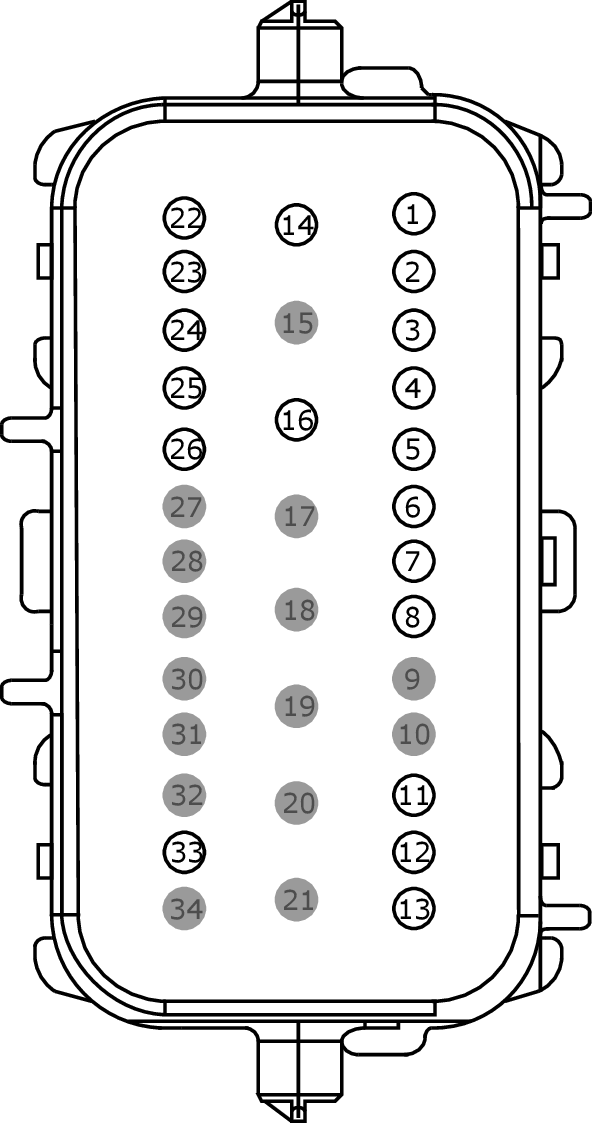

GFDW14732

Courtesy of FORD MOTOR COMPANY

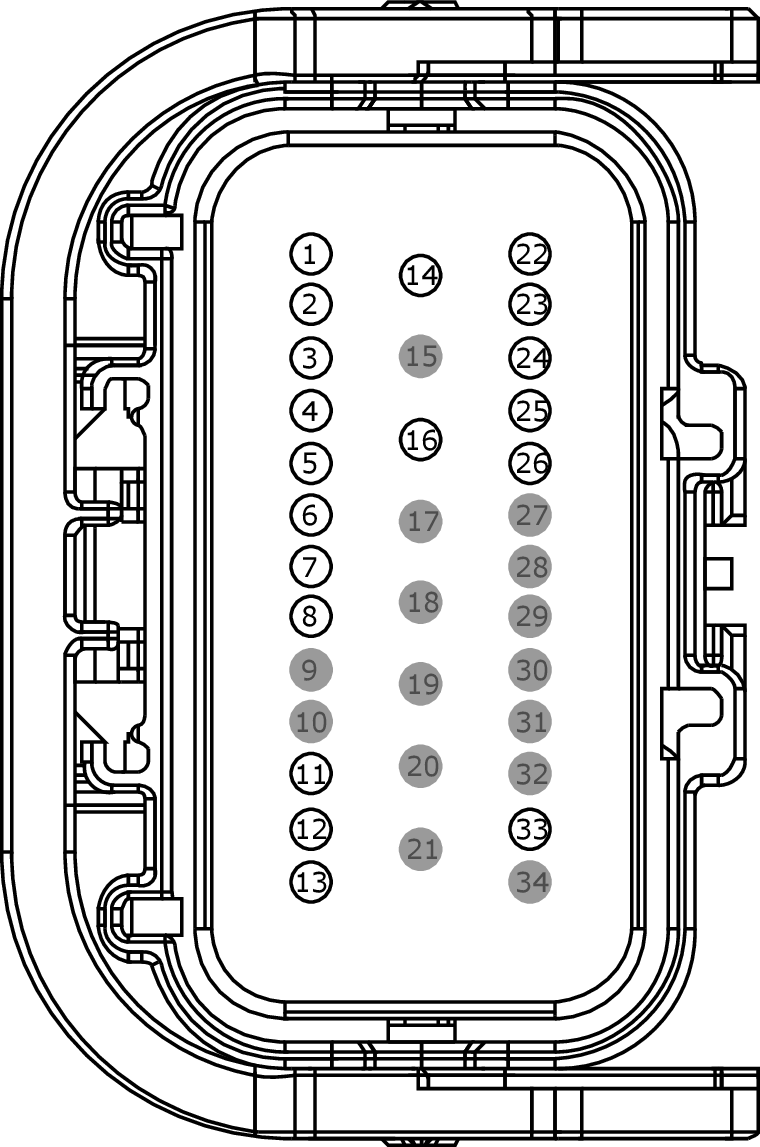

GFDW14733

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	VE225 (YE-OG)	22
2	VE518 (BN-WH)	22
3	VCA06 (WH-OG)	22
4	RCA20 (BN)	22
5	VCA04 (BU-OG)	22
6	RCA18 (BN-GN)	22
7	CE114 (GN-BU)	22
8	CBK02 (GN)	18
9	*	*
10	*	*
11	CCF31 (BN-VT)	18
12	CBK02 (GN)	18
13	CAT03 (GY-BN)	20
14	CBK01 (BU)	10
15	*	*
16	CAT11 (BN)	14
17	*	*
18	*	*
19	*	*
20	*	*
21	*	*
22	VE727 (BU-BN)	22
23	CE420 (GY-VT)	22
24	VE922 (VT-GN)	22
25	RE230 (WH-VT)	22
26	LE230 (BN-BU)	22
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	CBB77 (WH)	22
33	CBBB3 (WH-BN)	22

Pin	Circuit	Gauge	Qualifier
1	VE225 (YE-OG)	22
2	VE518 (BN-WH)	22
3	VCA06 (WH-OG)	20
4	RCA20 (BN)	20
5	VCA04 (BU-OG)	20
6	RCA18 (BN-GN)	20
7	CE114 (GN-BU)	20
8	CBK02 (GN)	18
9	*	*
10	*	*
11	CCF31 (BN-VT)	18
12	CBK02 (GN)	16
13	CAT03 (GY-BN)	22
14	CBK01 (BU)	10
15	*	*
16	CAT11 (BN)	16
17	*	*
18	*	*
19	*	*
20	*	*
21	*	*
22	VE727 (BU-BN)	22
23	CE420 (GY-VT)	20
24	VE922 (VT-GN)	22
25	RE230 (WH-VT)	22
26	LE230 (BN-BU)	22
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	CBBB3 (WH-BN)	22
