Connector End View (C265) - INLINE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline C265

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

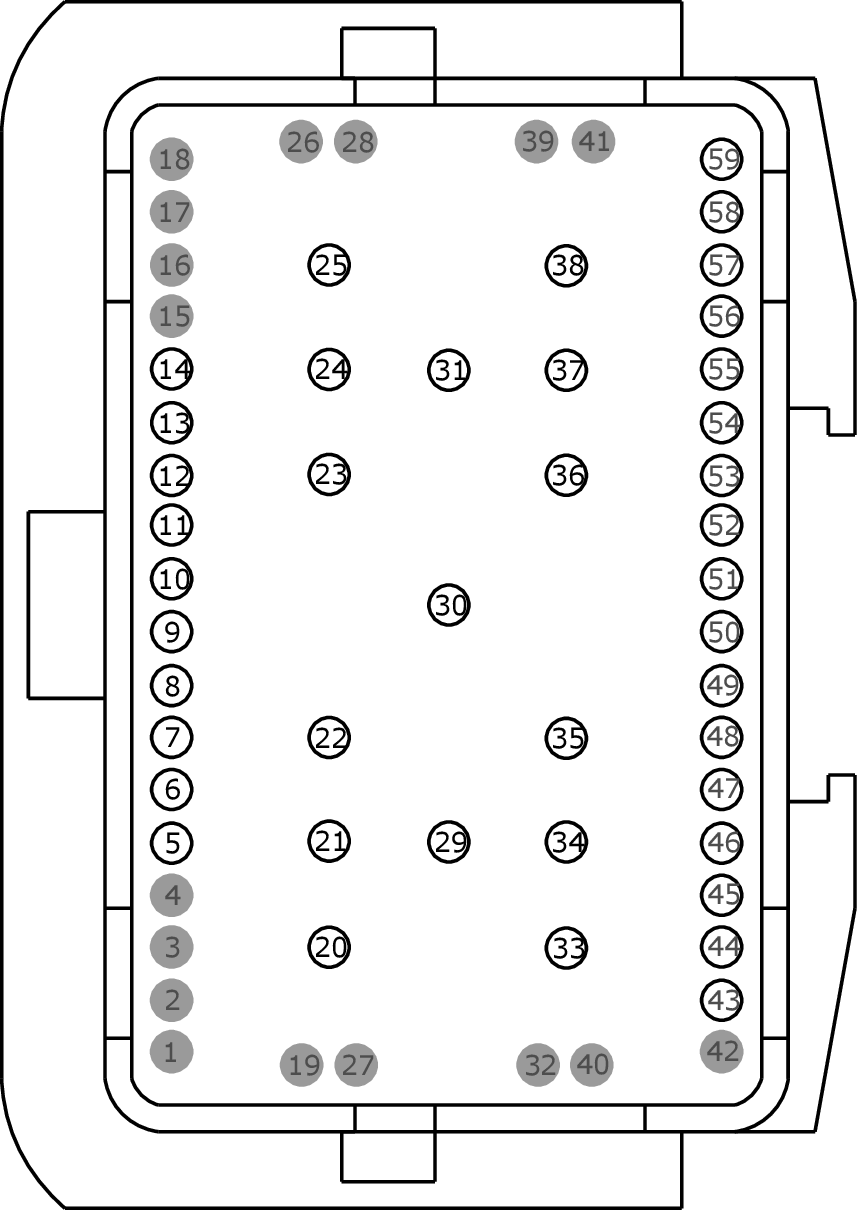

MALE

Harness 12A581

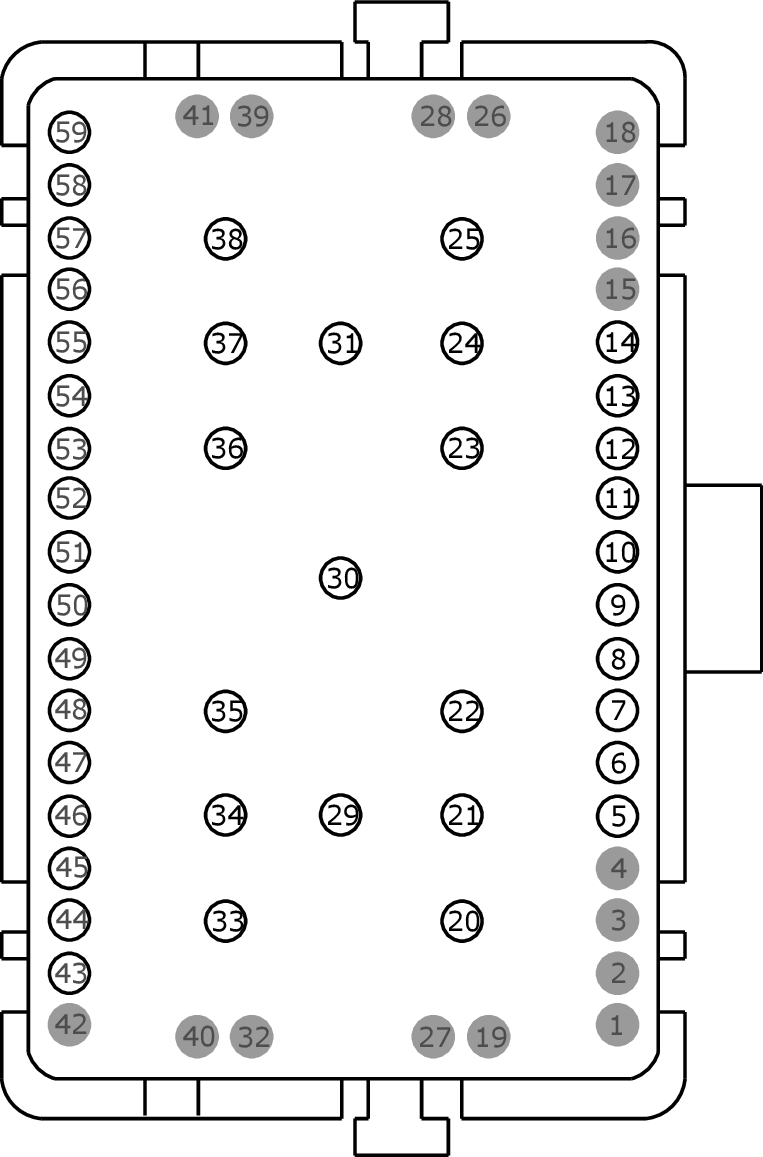

FEMALE

Harness 14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	CBB63 (BN-YE)	22
6	CBB63 (BN-YE)	22
7	CPM44 (GN-OG)	22
8	CPM43 (WH-VT)	22
9	CES09 (VT-OG)	22
10	VDB25 (GN-OG)	22
11	VDB26 (GY-BU)	22
12	CBB23 (BN-YE)	20
13	CPW58 (YE-OG)	22
14	CPW59 (VT-BN)	22
15	*	*
16	*	*
17	*	*
18	*	*
19	*	*
20	SBB26 (YE-RD)	16
21	SBB27 (BU-RD)	16
22	SBB28 (GN-RD)	16
23	CBB92 (GN-WH)	16
24	SBB50 (YE-RD)	16
25	CBB20 (YE-VT)	18
26	*	*
27	*	*
28	*	*
29	CPSC8 (GN-OG)	20
30	SBB14 (BN-RD)	16
31	CBB05 (YE)	12
32	*	*
33	CPW67 (BN-VT)	14
34	CPW68 (VT-OG)	14
35	CBB90 (YE-OG)	16
36	CBB91 (BN)	16
37	SBB36 (GN-RD)	16
38	SBB35 (BU-RD)	16
39	*	*
40	*	*
41	*	*
42	*	*
43	*	*
44	*	*
45	*	*
46	*	*
47	*	*
48	*	*
49	*	*
50	*	*
51	*	*
52	*	*
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*
58	*	*

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	CBB63 (BN-YE)	22
6	CBB63 (BN-YE)	22
7	CPM44 (GN-OG)	22
8	CPM43 (WH-VT)	22
9	CES09 (VT-OG)	22
10	VDB25 (GN)	26
11	VDB26 (GY)	26
12	CBB23 (BN-YE)	22
13	CPW58 (YE)	26
14	CPW59 (VT)	26
15	*	*
16	*	*
17	*	*
18	*	*
19	*	*
20	SBB26 (YE-RD)	14
21	SBB27 (BU-RD)	16
22	SBB28 (GN-RD)	16
23	CBB92 (GN-WH)	16
24	SBB50 (YE-RD)	16
25	CBB20 (YE-VT)	16
26	*	*
27	*	*
28	*	*
29	CPSC8 (GN-OG)	20
30	SBB14 (BN-RD)	14
31	CBB05 (YE)	14
32	*	*
33	CPW67 (BN-VT)	14
34	CPW68 (VT-OG)	14
35	CBB90 (YE-OG)	16
36	CBB91 (BN)	16
37	SBB36 (GN-RD)	16
38	SBB35 (BU-RD)	16
39	*	*
40	*	*
41	*	*
42	*	*
43	*	*
44	*	*
45	*	*
46	*	*
47	*	*
48	*	*
49	*	*
50	*	*
51	*	*
52	*	*
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*
58	*	*
