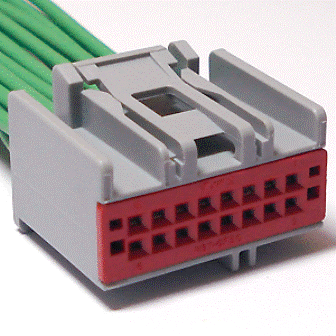

Connector End View (C218B) - CLOCKSPRING

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VHS81 (*)

*

THERMISTOR - HEATED STEERING WHEEL +

2

RHS81 (*)

*

THERMISTOR - HEATED STEERING WHEEL -

3

*

*

Not Used

4

RRH02 (*)

*

SWITCH - HORN

5

*

*

Not Used

6

LX105 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3

7

LX106 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4

8

RX101 (*)

*

SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)

9

CLN04 (*)

*

ILLUMINATION FEED

10

GD215 (*)

*

HORN/ ILLUMINATION GROUND

11

*

*

Not Used

12

*

*

Not Used

13

*

*

Not Used

14

LX103 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1

15

LX104 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2

16

RX102 (*)

*

SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses

Module - Reverse Park Aid (RPA)

Radio

Switch - Power Window - Driver

Switch - Reverse Park Aid
