Connector End View (C215) - INLINE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline C215

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

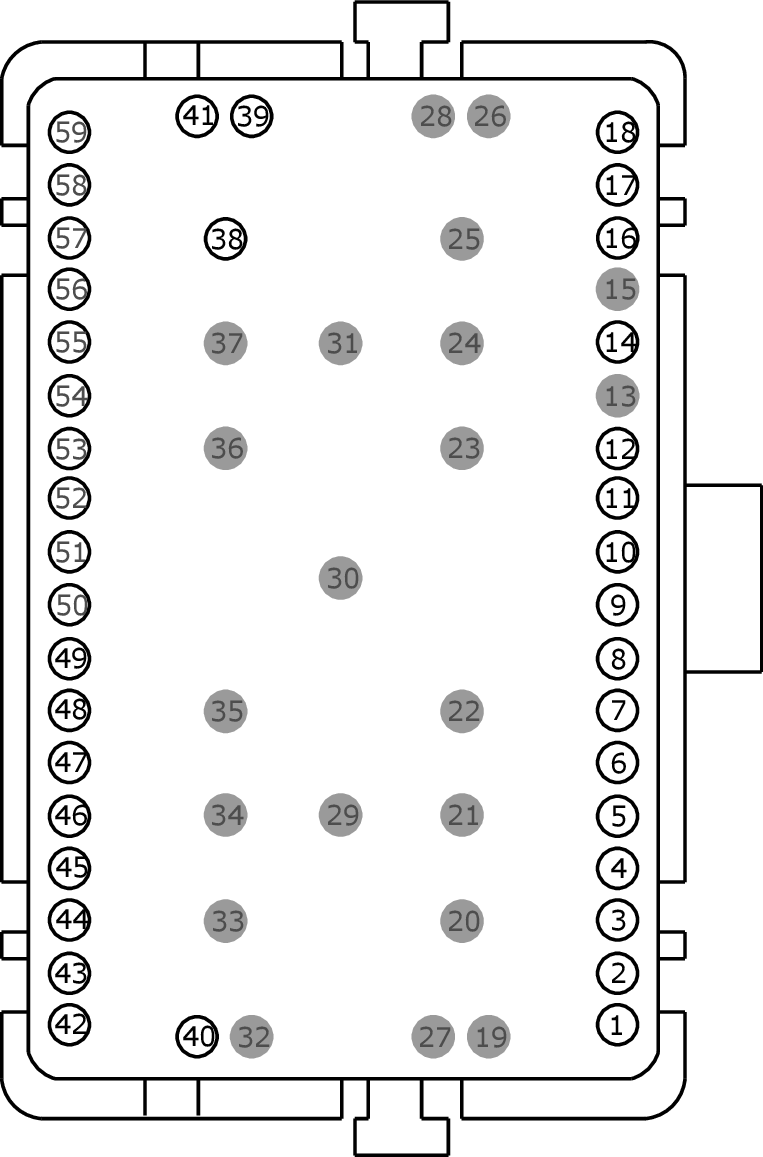

MALE

Harness 14401

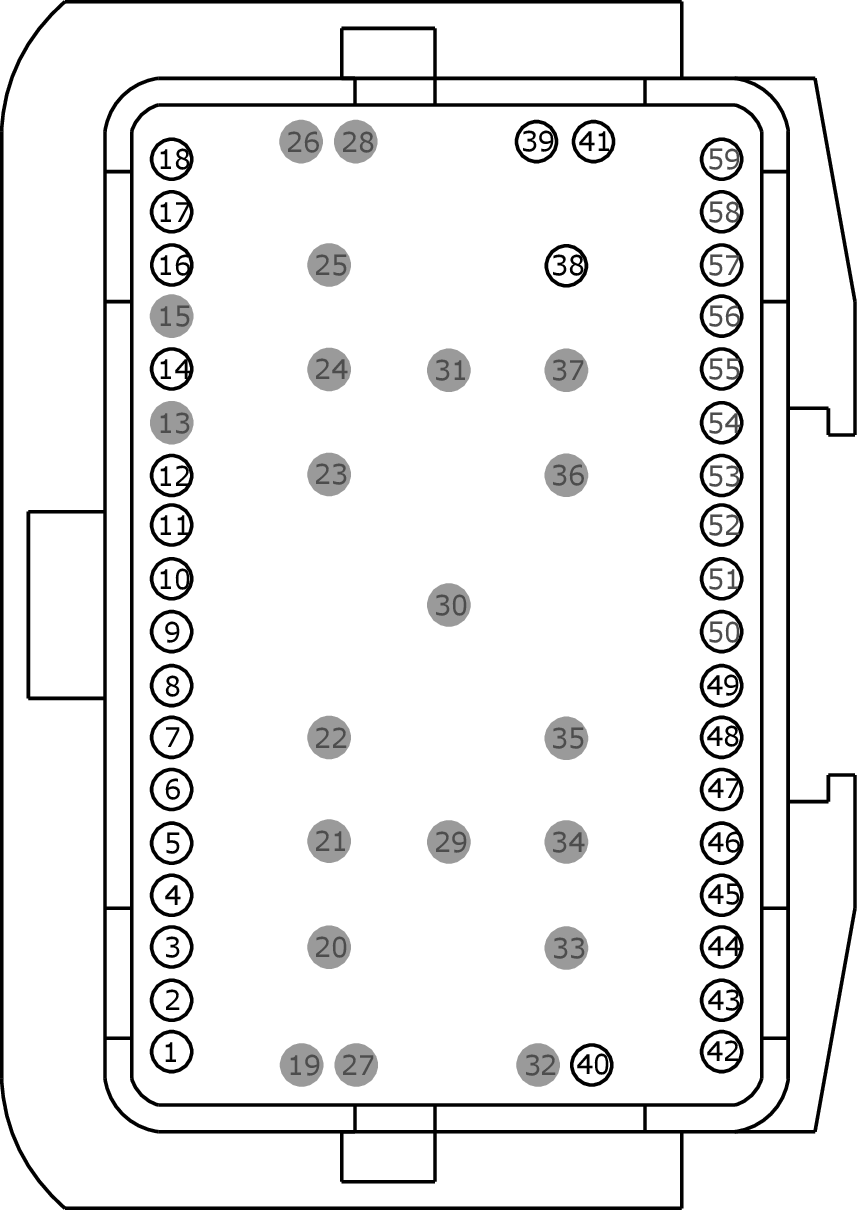

FEMALE

Harness 14B079

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	CMP32 (GN)	26
2	VLN04 (VT-GY)	22
3	CDC74 (BU)	26
4	CET53 (BU)	26
5	CBP19 (BN-WH)	22
6	CET34 (BN-GN)	22
7	CET43 (GY)	26
8	CET42 (VT)	26
9	RE407 (YE)	26
10	CDC41 (WH-BN)	22
11	GD214 (BK-BU)	22
12	CET52 (GN)	26
13	*	*
14	VLN73 (GY-BN)	22
15	*	*
16	GD214 (BK-BU)	22
17	RPK07 (GN)	26
18	VPK07 (VT)	26
19	*	*
20	*	*
21	*	*
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	*	*
38	VLN04 (VT-GY)	22
39	VME45 (BU)	26
40	VME46 (BN)	26
41	RME45 (GN)	26
42	DME45 (BK)	20
43	LME89 (YE)	26
44	VME45 (BU)	26
45	RME45 (GN)	26
46	VME46 (BN)	26
47	RME46 (WH)	26
48	DME45 (BK)	20
49	RME89 (BU)	26
50	*	*
51	*	*
52	*	*
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*
58	*	*

Pin	Circuit	Gauge	Qualifier
1	CMP32 (GN)	26
2	VLN04 (VT)	26
3	CDC74 (BU)	26
4	CET53 (BU)	26
5	CBP19 (BN-WH)	22
6	CET34 (BN-GN)	22
7	CET43 (GY)	26
8	CET42 (VT)	26
9	RE407 (YE)	26
10	CDC41 (WH-BN)	22
11	GD214 (BK)	26
12	CET52 (GN)	26
13	*	*
14	VLN73 (GY)	26
15	*	*
16	GD214 (BK-BU)	22
17	RPK07 (GN-OG)	20
18	VPK07 (VT)	20
19	*	*
20	*	*
21	*	*
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	*	*
38	VLN04 (VT-GY)	22
39	VME45 (BU)	26
40	VME46 (BN)	26
41	RME45 (GN)	26
42	DME45 (BK)	20
43	LME89 (YE)	26
44	VME45 (BU)	26
45	RME45 (GN)	26
46	VME46 (BN)	26
47	RME46 (WH)	26
48	DME45 (BK)	20
49	RME89 (BU)	26
50	*	*
51	*	*
52	*	*
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*
58	*	*
