Connector End View (C213) - INLINE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Inline C213
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

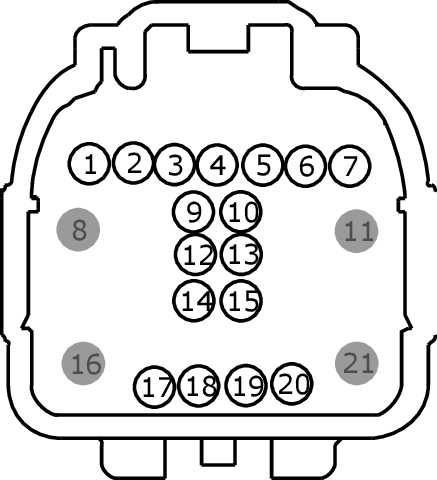

MALE
Harness 19F561

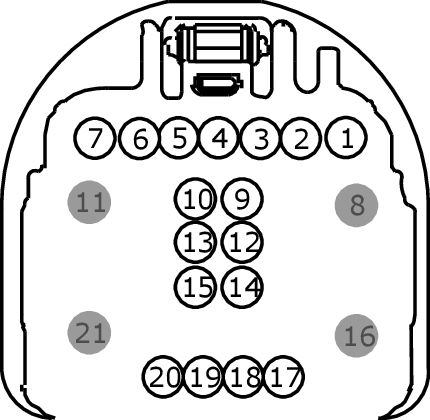

FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
LH111 (BN-WH) |
22 |
|
|
2 |
VH440 (BN) |
26 |
|
|
3 |
CH239 (BU) |
26 |
|
|
4 |
CH238 (YE) |
26 |
|
|
5 |
CH203 (GN) |
26 |
|
|
6 |
CH202 (BU) |
26 |
|
|
7 |
VH436 (YE) |
26 |
|
|
8 |
* |
* |
|
|
9 |
VH410 (GY-BU) |
20 |
|
|
10 |
VH438 (VT) |
26 |
|
|
11 |
* |
* |
|
|
12 |
VH406 (VT-BN) |
20 |
|
|
13 |
CH208 (OG) |
26 |
|
|
14 |
RH111 (GY-BU) |
22 |
|
|
15 |
CH207 (GY) |
26 |
|
|
16 |
* |
* |
|
|
17 |
CH213 (BN) |
26 |
|
|
18 |
CH212 (BU) |
26 |
|
|
19 |
VH441 (WH) |
26 |
|
|
20 |
VH412 (YE-GY) |
20 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
LH111 (BN-WH) |
22 |
|
|
2 |
VH440 (BN) |
26 |
|
|
3 |
CH239 (BU) |
26 |
|
|
4 |
CH238 (YE) |
26 |
|
|
5 |
CH203 (GN) |
26 |
|
|
6 |
CH202 (BU) |
26 |
|
|
7 |
VH436 (YE) |
26 |
|
|
8 |
* |
* |
|
|
9 |
VH410 (GY) |
26 |
|
|
10 |
VH438 (VT) |
26 |
|
|
11 |
* |
* |
|
|
12 |
VH406 (VT) |
26 |
|
|
13 |
CH208 (OG) |
26 |
|
|
14 |
RH111 (GY-BU) |
22 |
|
|
15 |
CH207 (GY) |
26 |
|
|
16 |
* |
* |
|
|
17 |
CH213 (BN) |
26 |
|
|
18 |
CH212 (BU) |
26 |
|
|
19 |
VH441 (WH) |
26 |
|
|
20 |
VH412 (YE) |
26 |
