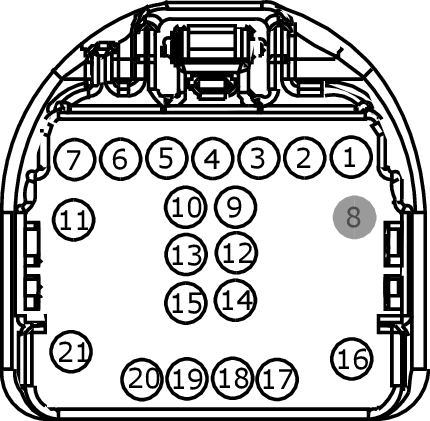

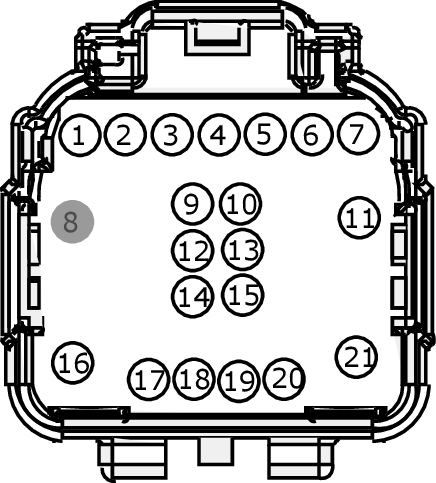

Connector End View (C212) - INLINE
Inline C212
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
RME10 (WH-OG) |
22 |
|
|
2 |
VME10 (WH-VT) |
22 |
|
|
3 |
LYA03 (YE-VT) |
22 |
|
|
4 |
RYA03 (BU-BN) |
22 |
|
|
5 |
VPL56 (BU) |
26 |
|
|
6 |
CLF76 (GY) |
26 |
|
|
7 |
CLF75 (VT-BN) |
22 |
|
|
8 |
* |
* |
|
|
9 |
VPK07 (VT) |
26 |
|
|
10 |
RPK07 (GN) |
26 |
|
|
11 |
HYA01 (OG-GN) |
16 |
|
|
12 |
VDB06 (GY-OG) |
22 |
|
|
13 |
VDB07 (VT-OG) |
22 |
|
|
14 |
RMM23 (WH) |
26 |
|
|
15 |
VMM23 (BN) |
26 |
|
|
16 |
DMM23 (BK) |
20 |
|
|
17 |
VMP24 (WH) |
22 |
|
|
17 |
VMP24 (WH) |
26 |
|
|
18 |
CLN09 (YE-GN) |
22 |
|
|
19 |
CBX07 (GN-RD) |
22 |
|
|
20 |
VLN04 (VT-GY) |
26 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
RME10 (WH-OG) |
20 |
|
|
2 |
VME10 (WH-VT) |
20 |
|
|
3 |
LYA03 (YE) |
26 |
|
|
4 |
RYA03 (BU) |
26 |
|
|
5 |
VPL56 (BU) |
26 |
|
|
6 |
CLF76 (GY) |
26 |
|
|
7 |
CLF75 (VT-BN) |
22 |
|
|
8 |
* |
* |
|
|
9 |
VPK07 (VT) |
26 |
|
|
10 |
RPK07 (GN) |
26 |
|
|
11 |
HYA01 (OG-GN) |
16 |
|
|
12 |
VDB06 (GY-OG) |
22 |
|
|
13 |
VDB07 (VT-OG) |
22 |
|
|
14 |
RMM23 (WH) |
26 |
|
|
15 |
VMM23 (BN) |
26 |
|
|
16 |
DMM23 (BK) |
20 |
|
|
17 |
VMP24 (WH) |
22 |
|
|
18 |
CLN09 (YE-GN) |
20 |
|
|
19 |
CBX07 (GN-RD) |
22 |
|
|
20 |
VLN04 (VT-GY) |
22 |
