Connector End View (C174) - IGNITION TRANSFORMER CAPACITOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

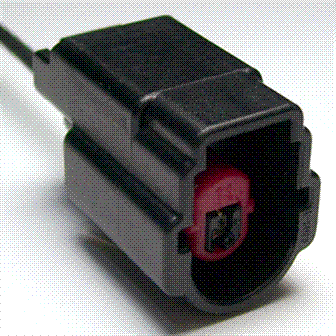

Connector: C174
Description
IGNITION TRANSFORMER CAPACITOR
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBK04 (VT) |
18 |
FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1253 |
Service Part Number: 6U2Z-14S411-KB Gauge: 16 Pin material: Tin (greased) Cavities: 1 Vehicle Uses Capacitor - Ignition/Radio |
