Connector End View (C137) - WINDSHIELD WASHER PUMP MOTOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C137
Description
WINDSHIELD WASHER PUMP MOTOR
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD129 (BK-YE) |
20 |
GROUND - HEADLAMP PANEL/GOR LEFT |
|
|
2 |
CRW14 (BU-WH) |
16 |
CTRL MOD. - FRONT WASHER |
|

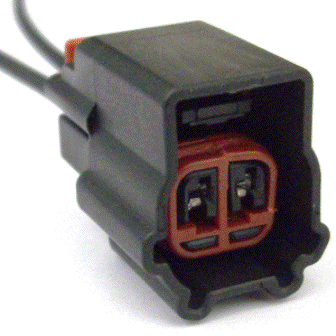

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
