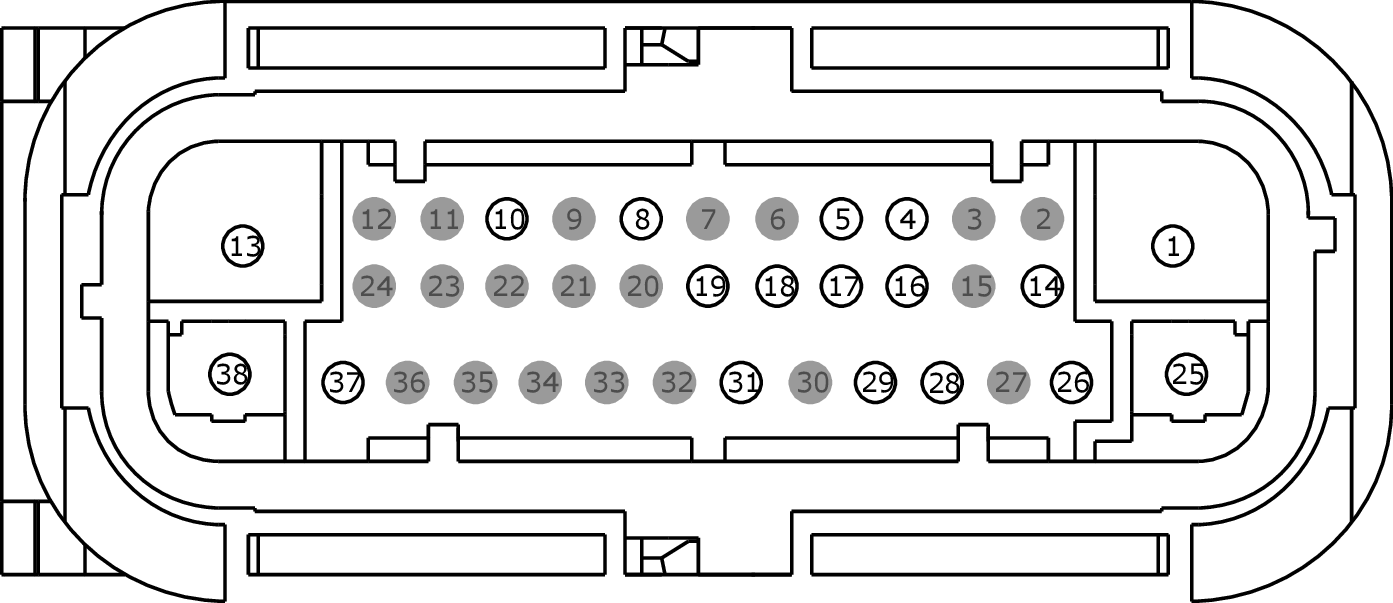

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBB11 (BU-RD)

10

FUSE - 11 OR CIRCUIT BREAKER

2

*

*

Not Used

3

*

*

Not Used

4

RCA19 (VT)

20

CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT

5

LCA37 (YE-OG)

22

CTRL MOD. - SENSOR BRAKE VACUUM +

6

*

*

Not Used

7

*

*

Not Used

8

RCA17 (YE)

20

CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

9

*

*

Not Used

10

RCA37 (WH-BU)

22

CTRL MOD. - SENSOR BRAKE VACUUM -

11

*

*

Not Used

12

*

*

Not Used

13

GD130 (BK-YE)

10

GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT

14

VDB26 (GY-BU)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW

15

*

*

Not Used

16

VCA05 (GY-VT)

20

SENSOR - WHEEL SPEED RIGHT FRONT

17

VCA06 (WH-OG)

22

SENSOR - WHEEL SPEED RIGHT REAR

18

RCA18 (BN-GN)

22

CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR

19

VCA03 (VT-WH)

20

SENSOR - WHEEL SPEED LEFT FRONT

20

*

*

Not Used

21

*

*

Not Used

22

*

*

Not Used

23

*

*

Not Used

24

*

*

Not Used

25

SBB61 (GY-RD)

14

FUSE - 61 OR CIRCUIT BREAKER

26

VDB25 (GN-OG)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH

27

*

*

Not Used

28

CBBA7 (GN-BN)

22

FUSE - 107 OR CIRCUIT BREAKER

29

RCA20 (BN)

22

CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR

30

*

*

Not Used

31

VCA04 (BU-OG)

22

SENSOR - WHEEL SPEED LEFT REAR

32

*

*

Not Used

33

*

*

Not Used

34

*

*

Not Used

35

*

*

Not Used

36

*

*

Not Used

37

VCA38 (BN-VT)

22

SENSOR - BRAKE VACUUM SIGNAL 1

38

GD130 (BK-YE)

14

GROUND - HEADLAMP PANEL/GOR LEFT # 2ND POINT
