Connector End View (C125) - WINDSHIELD WIPER
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C125
Description
WINDSHIELD WIPER
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRW15 (BN-WH) |
22 |
CTRL MOD. - FRONT WIPER HIGH |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
VDN05 (YE-GY) |
22 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [REPLACED BY VX107] |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD129 (BK-YE) |
16 |
GROUND - HEADLAMP PANEL/GOR LEFT |
|
|
7 |
CRW14 (BU-WH) |
16 |
CTRL MOD. - FRONT WASHER |
|
|
8 |
CRW03 (VT-WH) |
16 |
RELAY - FRONT WIPER |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|

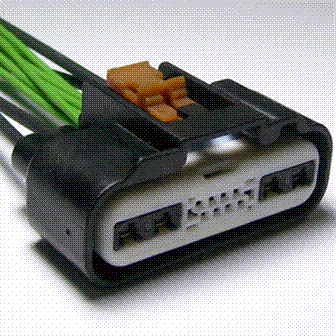

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1316 |
Service Part Number: BU2Z-14S411-AB Gauge: 14 20 Pin material: Tin & Silver Cavities: 12 Vehicle Uses Motor - Windshield Wiper |
