Connector End View (C108) - KNOCK SENSOR (KS)
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C108
Description
KNOCK SENSOR (KS)
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] |
|
|
2 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - |
|
|
3 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND BANK 1ST (KS2N) [KSL2-] |
|
|
4 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] |
|

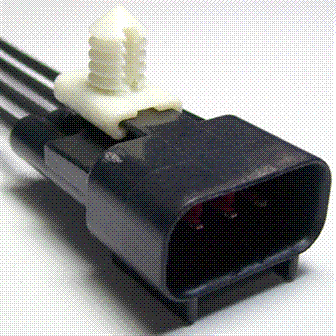

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1220 |
Service Part Number: BU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Knock |
