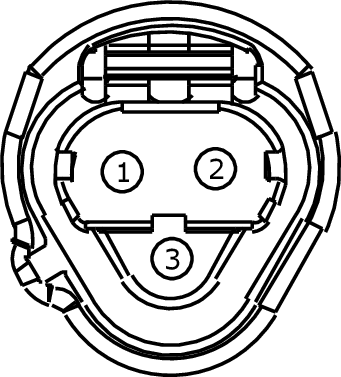

Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C106
Description
FUEL RAIL PRESSURE (FRP) SENSOR
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) |
|
|
2 |
VE727 (BU-BN) |
20 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
|
|
3 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1281 |

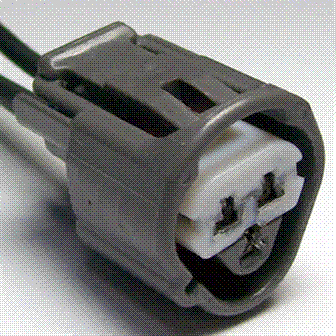

Service Part Number: CU2Z-14S411-PA Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Fuel Rail Pressure |
