Connector End View (C102A) - GENERATOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C102A
Description
GENERATOR
Color
BK
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CDC15 (VT) |
20 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
|
2 |
CDC10 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) |
|
|
3 |
SBB38 (BN-RD) |
18 |
FUSE - 38 OR CIRCUIT BREAKER |
|

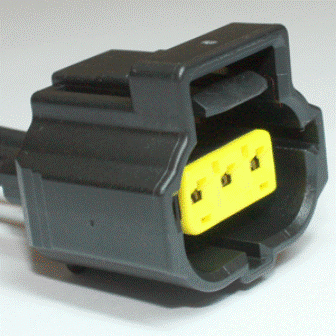

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-118 |
Service Part Number: 1U2Z-14S411-TA Gauge: 14 Pin material: Tin Cavities: 3 Vehicle Uses Alternator Sensor - Brake Fluid Level Sensor - Throttle Position |
