Driveshaft - Rear, Two-Piece: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |
NOTE:

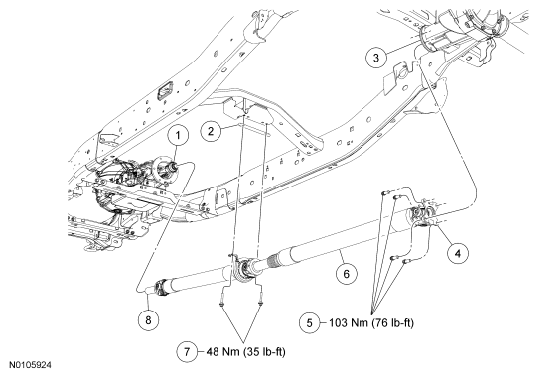

Front slip yoke shown in illustration, front fixed flange similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A309 | Transmission extension housing |
| 2 | 4A209 | Center bearing shim (if equipped) |
| 3 | 4858 | Pinion flange |
| 4 | 4782 | Driveshaft flange |
| 5 | N800594 | Driveshaft flange-to-pinion bolts (4 required) (front fixed flange [8 required]) |
| 6 | 4R602 | Driveshaft assembly |
| 7 | W713078 | Driveshaft center bearing bolts (2 required) |
| 8 | 4841 | Driveshaft slip yoke |
