Two Speed Fan Operation

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

Although the PCM output circuits are called LFC and HFC, cooling fan operation is controlled by a combination of these outputs.

Refer to ENGINE CONTROL COMPONENTS .

Fig 1: Identifying Low Speed Cooling Fan Motor Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	FANPWR (Fan Power)
2	GND (Ground)

Fig 2: Identifying High Speed Cooling Fan Motor Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	FANPWR (Fan Power)
2	GND (Ground)

Fig 3: Identifying Low Fan Control Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Mustang	A	5 3 2 1	FANPWR B+ LFC VPWR
All other vehicles	B	5 3 2 1	FANPWR B+ LFC VPWR

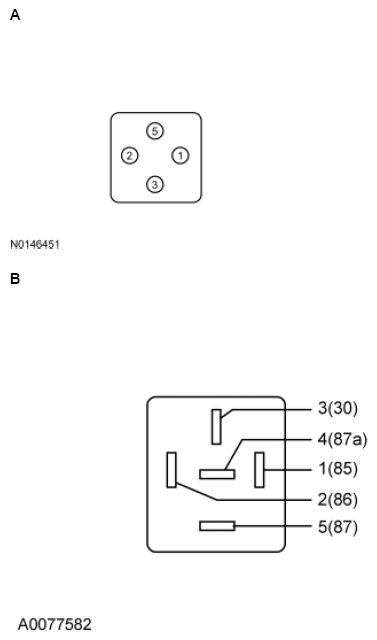

Fig 4: Identifying High Fan Control Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Mustang	A	5 3 2 1	FANPWR B+ HFC VPWR
All other vehicles	B	5 3 2 1	FANPWR B+ HFC VPWR

NOTE: The HFC circuit may be wired to the FC and HFC relays. Refer to the OEM Wiring Diagrams article for additional information.

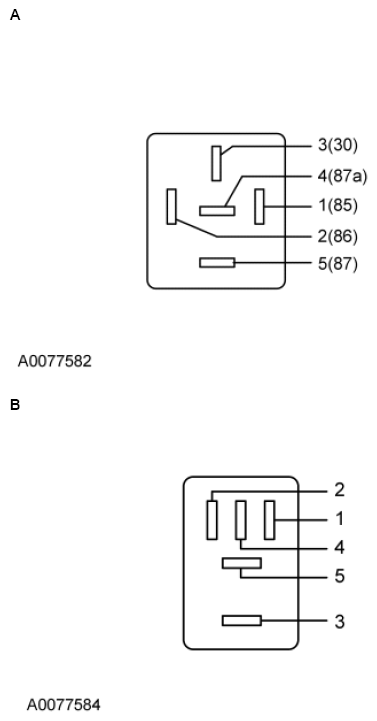

Fig 5: Identifying Fan Control Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape, Focus	A	2 5	GND FANPWR
All other vehicles	B	5 3 4 2	GND FC FANPWR HFC

NOTE: The HFC circuit may be wired to the FC and HFC relays. Refer to the OEM Wiring Diagrams article for additional information.
