PINPOINT TEST KC: Fuel Pump Control Module: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

fuel pump (9H307)
fuel pump control module (9D412)
fuel pump control module 2 (9D412)
fuel pump control module relay
fuel pump control module relay 2
inertia fuel shutoff (IFS) switch (9341)
harness circuits: B+, GND, FPC, FPM, FPM2, FPPWR, FP2PWR, FPRTN, FP2RTN, IES, VPWR, and VPWR Fuel
powertrain control module (PCM) (12A650)

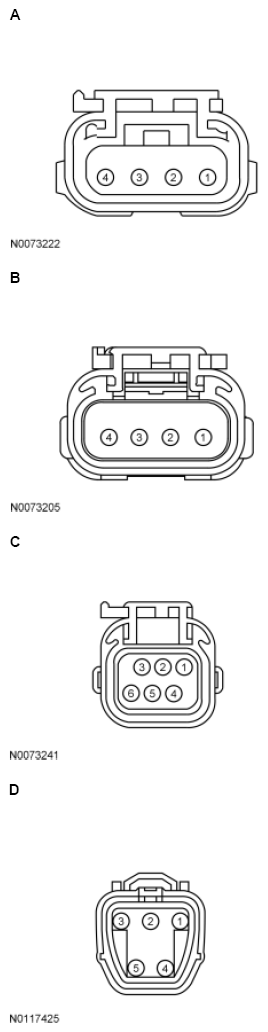

Fig 1: Identifying Fuel Pump Connector Terminals
Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, F-150, Mustang 3.7L, Mustang 5.0L	A	3 4	FPRTN FPPWR
F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van	B	3 4	FPRTN FPPWR
Mustang 5.8L	C	6 3 1 4	FPRTN FPPWR FP2RTN FP2PWR
All other vehicles	D	4 5	FPRTN FPPWR

Fig 2: Identifying Fuel Pump Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-650/F-750, Focus, Fusion, MKZ, Motorhome/Stripped Chassis/Step Van	A	8 5 7 3 4 1	FPRTN FPPWR FPM FPC GND VPWR Fuel
All other vehicles	A	6 8 5 7 3 4 1	ENS FPRTN FPPWR FPM FPC GND VPWR Fuel

Fig 3: Identifying Fuel Pump Control Module 2 Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	ENS (Event Notification Signal)
8	FP2RTN (Fuel Pump 2 Return)
5	FP2PWR (Fuel Pump 2 Power)
7	FPM2 (Fuel Pump Monitor 2)
3	FPC (Fuel Pump Command)
4	GND (Ground)
1	VPWR Fuel

Refer to the OEM Wiring Diagrams article for schematic and connector information.

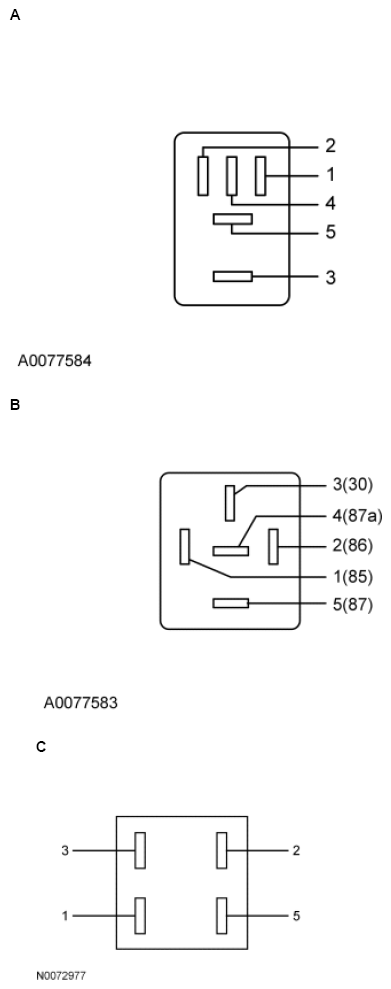

Fig 4: Identifying Fuel Pump Control Module Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
E-Series, Expedition, Motorhome/Stripped Chassis/Step Van, Navigator	A	2 1 3 5	GND VPWR B+ VPWR Fuel
F-150	A	2 1, 3 5	FP B+ VPWR Fuel
F-650/F-750	B	86 30, 85 87	GND B+ VPWR Fuel
F-Series Super Duty, Flex, MKT	C	2 1, 3 5	FP B+ VPWR Fuel
Fiesta, Mustang	C	2 1 3 5	GND VPWR B+ VPWR Fuel
All other vehicles	C	1 2, 3 5	FP B+ VPWR Fuel

Fig 5: Identifying Fuel Pump Control Module 2 Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	GND (Ground)
1	VPWR (Vehicle Power)
3	B+ (Battery Positive Voltage)
5	VPWR Fuel

Fig 6: Identifying Inertia Fuel Shutoff Switch Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	VPWR Fuel - B (Vehicle Power)
1	VPWR Fuel - A (Vehicle Power)

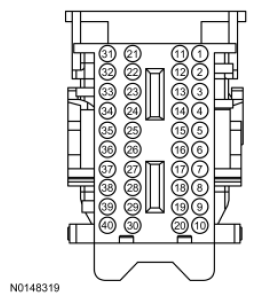

Fig 7: Identifying Body Control Module-C Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
29	IES (Impact Event Signal)
26	FP (Fuel Pump)

Fig 8: Identifying Body Control Module-E Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
E9	VPWR (Vehicle Power)

Fig 9: Identifying Body Control Module-F Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	FP (Fuel Pump)

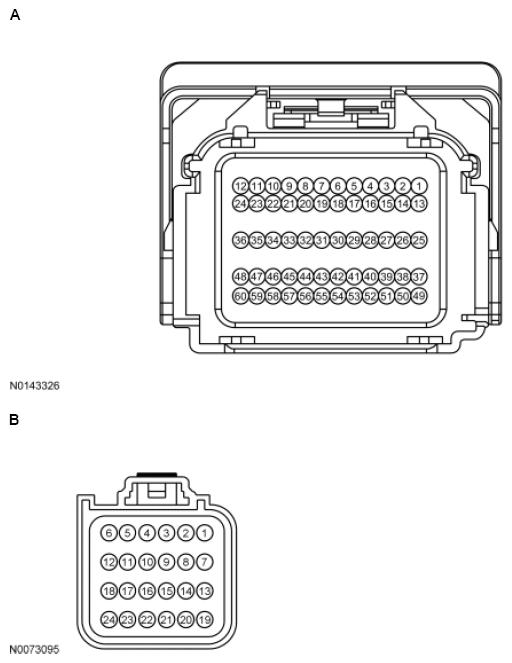

Fig 10: Identifying Restraints Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Explorer, Fiesta, MKS, Taurus	A	42	ENS
All other vehicles	B	19	ENS
