PINPOINT TEST JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
There is additional information available on this procedure. Refer to the Service Tips tab and select the appropriate test listed under the Job Aids title.
For 2 wire coil harness connectors, select the PCM Ignition Coil Driver Test.
For 3 wire coil harness connectors, select the Driver On Coil Ignition Test.
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)
- ignition coil harness
- powertrain control module (PCM) (12A650)

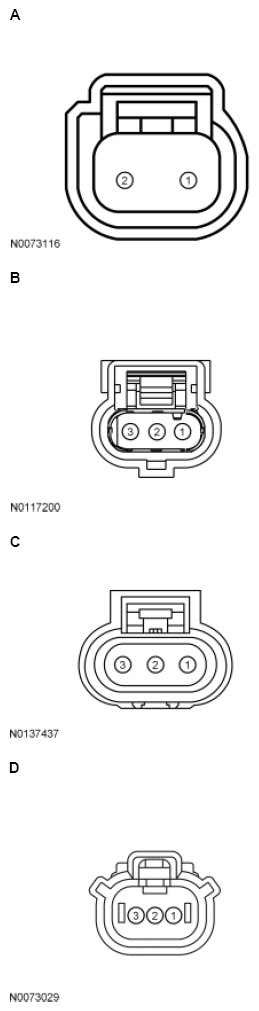

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Expedition, F-Series Super Duty 6.8L, Motorhome/Stripped Chassis/Step Van, Navigator |
A | 2 1 |
COP VPWR |
| Edge 2.0L, Escape 2.0L, Explorer 2.0L, Focus, Fusion 2.0L, MKT 2.0L, MKZ 2.0L, Taurus 2.0L |
B | 1 2 3 |
COP GND VPWR |
| Escape 1.6L, Fiesta, Fusion 1.5L, Fusion 1.6L, Transit Connect 1.6L |
C | 1 2 3 |
COP GND VPWR |
| Escape 2.5L, Fusion 2.5L, Mustang 5.8L, Transit Connect 2.5L |
A | 1 2 |
COP VPWR |
| Explorer GTDI 3.5L, F-150 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L |
D | 2 1 3 |
COP GND VPWR |
| F-150 6.2L, F-Series Super Duty 6.2L |
D | 3 1 |
COP VPWR |
| All other vehicles | D | 1 3 |
COP VPWR |
