PINPOINT TEST JD: Crankshaft Position (CKP) Sensor: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- CKP sensor (6C315)
- harness circuits: CKP, CKP+ and CKP-
- powertrain control module (PCM) (12A650)

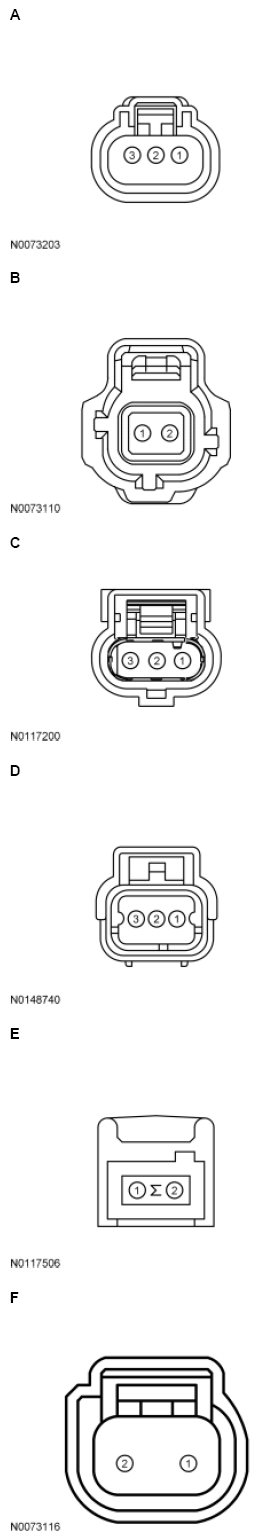

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge 2.0L, Escape 2.0L, Explorer 2.0L, Focus, MKT 2.0L, Taurus 2.0L |
A | 2 3 1 |
CKP SIGRTN VREF |
| Escape 1.6L | A | 3 2 1 |
CKP SIGRTN VREF |
| Escape 2.5L, Fusion 2.5L, Transit Connect 2.5L |
B | 2 1 |
CKP- CKP+ |
| Explorer GTDI 3.5L, F-150 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L |
C | 1 2 3 |
CKP SIGRTN VREF |
| Fiesta 1.0L, Fiesta GTDI 1.6L, Fusion 1.5L, Fusion 1.6L, Transit Connect 1.6L |
D | 3 2 1 |
CKP SIGRTN VREF |
| Fiesta TiVCT 1.6L | E | 2 1 |
CKP- CKP+ |
| Fusion 2.0L, MKZ 2.0L |
C | 2 3 1 |
CKP SIGRTN VREF |
| All other vehicles | F | 1 2 |
CKP- CKP+ |
