PINPOINT TEST HP: High Pressure Fuel Delivery System: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not apply battery voltage across the fuel injection pump circuits. Damage to the fuel volume regulator solenoid may result.
This pinpoint test is intended to diagnose the following:
- fuel injection pump (9D376)
- harness circuits: FVR and FVRRTN
- powertrain control module (PCM) (12A650)

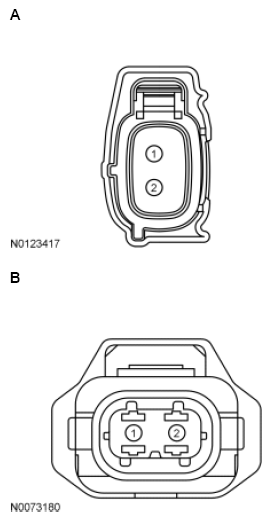

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150, Focus GDI 2.0L |
A | 2 1 |
FVRRTN FVR |
| Fiesta, Focus GTDI 2.0L |
B | 2 1 |
FVRRTN FVR |
| All other vehicles | B | 1 2 |
FVRRTN FVR |
