PINPOINT TEST HK: Variable Camshaft Timing (VCT): Introduction: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

VCT solenoid (6L713) or (6B297)
spider assembly right bank (6C260) or left bank (6C261)
harness circuits: VPWR and VCT
PCM (12A650)

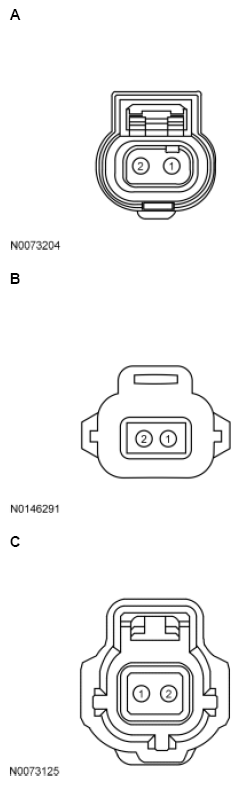

Fig 1: Identifying Variable Camshaft Timing 11 Solenoid Connector Terminals (1 Of 2)
Courtesy of FORD MOTOR CO.

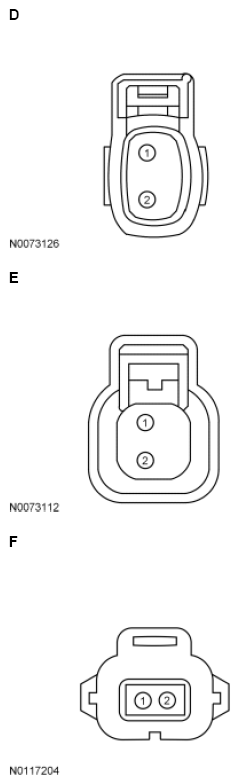

Fig 2: Identifying Variable Camshaft Timing 11 Solenoid Connector Terminals (2 Of 2)

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape 2.0L	A	2 1	VPWR VCT11
Escape 1.6L	B	1 2	VPWR VCT11
Expedition, Navigator	C	1 2	VPWR VCT11
Explorer GTDI 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L	D	1 2	VPWR VCT11
F-Series Super Duty	E	1 2	VPWR VCT11
Fiesta 1.6L, Fusion 1.5L, Fusion 1.6L	F	1 2	VPWR VCT11
All other vehicles	A	1 2	VPWR VCT11

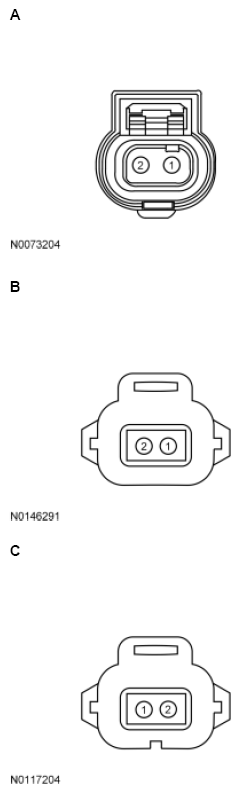

Fig 3: Identifying Variable Camshaft Timing 12 Solenoid Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Escape 2.0L	A	2 1	VPWR VCT12
Escape 1.6L	B	1 2	VPWR VCT12
Fiesta 1.6L, Fusion 1.5L, Fusion 1.6L	C	1 2	VPWR VCT12
All other vehicles	A	1 2	VPWR VCT12

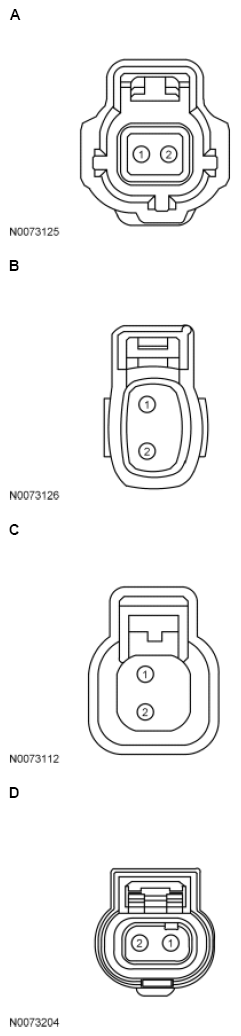

Fig 4: Identifying Variable Camshaft Timing 21 Solenoid Connector Terminals

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Expedition, Navigator	A	1 2	VPWR VCT21
Explorer GTDI 3.5L, Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L	B	1 2	VPWR VCT21
F-Series Super Duty	C	1 2	VPWR VCT21
All other vehicles	D	1 2	VPWR VCT21

Fig 5: Identifying Variable Camshaft Timing 22 Solenoid Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
1	VPWR (Vehicle Power)
2	VCT22 (Variable Camshaft Timing 22)
