PINPOINT TEST DW: Heated Oxygen Sensor (HO2S): Introduction: Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
WHILE CONDUCTING TESTS ON A HOT ENGINE TAKE ALL SAFETY PRECAUTIONS TO PREVENT SKIN CONTACT WITH HOT ENGINE COMPONENTS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
This pinpoint test is intended to diagnose the following:
- HO2S (9G444)
- harness circuits: HO2S12, HO2S22, HTR12, HTR22, VPWR and SIGRTN
- PCM (12A650)

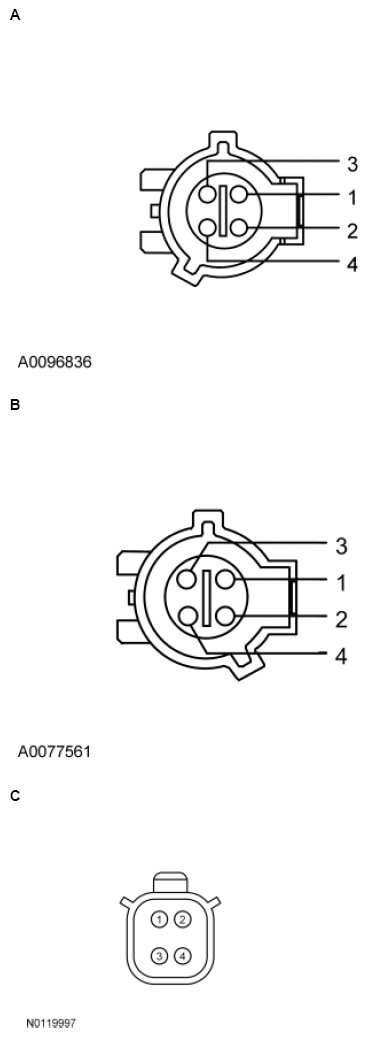

Heated Oxygen Sensor Bank 1, Sensor 2 (HO2S12) Connector
The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series, Fiesta TiVCT 1.6L, Motorhome/Stripped Chassis/Step Van |
A | 1 4 2 3 |
HTR12 SIGRTN VPWR HO2S12 |
| Escape 1.6L, Fiesta GTDI 1.6L, Transit Connect 1.6L |
B | 2 3 1 4 |
HTR12 SIGRTN VPWR HO2S12 |
| F-650/F-750 | D | 1 4 2 3 |
HTR12 SIGRTN VPWR HO2S12 |
| Fusion 1.5L | E | 2 3 1 4 |
HTR12 SIGRTN VPWR HO2S12 |
| All other vehicles | C | 2 3 1 4 |
HTR12 SIGRTN VPWR HO2S12 |
Heated Oxygen Sensor Bank 2, Sensor 2 (HO2S22) Connector
The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series | A | 1 4 2 3 |
HTR22 SIGRTN VPWR HO2S22 |
| F-650/F-750 | B | 1 4 2 3 |
HTR22 SIGRTN VPWR HO2S22 |
| All other vehicles | C | 2 3 1 4 |
HTR22 SIGRTN VPWR HO2S22 |
