PINPOINT TEST DR: Camshaft Position (CMP) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

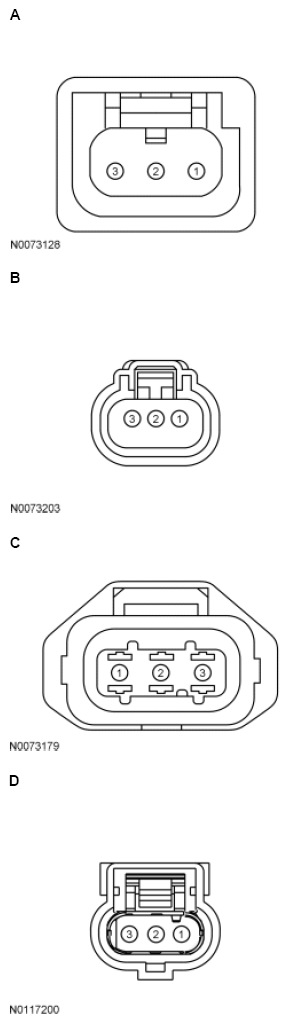

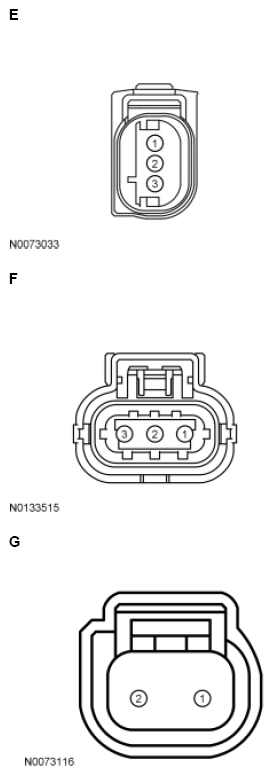

Fig 2: Identifying Camshaft Position 11 Sensor Connector Terminals (2 Of 2)
G09137492Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Edge 2.0L,
Escape 2.0L,
Explorer 2.0L,
Focus,
Fusion 2.0L,
MKT 2.0L,
MKZ 2.0L,
Taurus 2.0L		 A 1
2
3		 VREF
SIGRTN
CMP11
Escape 2.5L,
Fusion 2.5L,
Transit Connect 2.5L		 B 1
3
2		 VBPWR
SIGRTN
CMP11
Escape 1.6L,
Fiesta GTDI 1.6L,
Fusion 1.5L,
Fusion 1.6L		 C 3
1
2		 VREF
SIGRTN
CMP11
Explorer GTDI 3.5L,
Flex GTDI 3.5L,
MKS 3.5L,
MKT 3.5L,
Taurus GTDI 3.5L		 D 3
2
1		 VREF
SIGRTN
CMP11
F-150 6.2L,
F-Series Super Duty 6.2L		 E 3
2
1		 VBPWR
SIGRTN
CMP11
F-150 3.5L D 3
2
1		 VBPWR
SIGRTN
CMP11
F-150 5.0L,
Mustang 5.0L		 E 1
3
2		 VBPWR
SIGRTN
CMP11
Fiesta TiVCT 1.6L D 1
3
2		 VREF
SIGRTN
CMP11
Fiesta 1.0L F 1
3
2		 VREF
SIGRTN
CMP11
Transit Connect 1.6L F 3
1
2		 VREF
SIGRTN
CMP11
All other vehicles G 1
2		 VRSRTN
CMP11

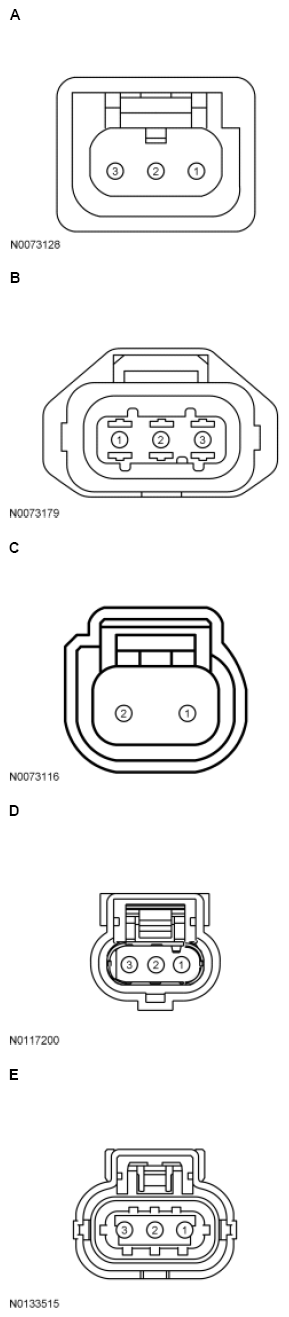

Fig 3: Identifying Camshaft Position 12 Sensor Connector Terminals
G09137493Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Edge 2.0L,
Escape 2.0L,
Explorer 2.0L,
Focus,
Fusion 2.0L,
MKT 2.0L,
MKZ 2.0L,
Taurus 2.0L		 A 1
2
3		 VREF
SIGRTN
CMP12
Escape 1.6L,
Fiesta GTDI 1.6L,
Fusion 1.5L,
Fusion 1.6L		 B 3
1
2		 VREF
SIGRTN
CMP12
F-150 5.0L,
F-150 3.7L,
Mustang 5.0L		 C 1
2		 VRSRTN
CMP12
F-150 3.5L D 3
2
1		 VBPWR
SIGRTN
CMP12
Fiesta TiVCT 1.6L D 1
3
2		 VREF
SIGRTN
CMP12
Fiesta 1.0L E 1
3
2		 VREF
SIGRTN
CMP12
Transit Connect E 3
1
2		 VREF
SIGRTN
CMP12
All other vehicles C 1
2		 VRSRTN2
CMP12

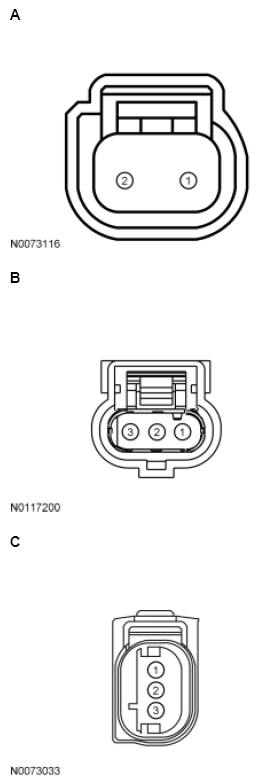

Fig 4: Identifying Camshaft Position 21 Sensor Connector Terminals
G09137494Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Expedition,
Navigator		 A 1
2		 VRSRTN2
CMP21
Explorer GTDI 3.5L,
Flex GTDI 3.5L,
MKS 3.5L,
MKT 3.5L,
Taurus GTDI 3.5L		 B 3
2
1		 VREF
SIGRTN
CMP21
F-150 6.2L,
F-Series Super Duty		 C 3
2
1		 VBPWR
SIGRTN
CMP21
F-150 3.5L B 3
2
1		 VBPWR
SIGRTN
CMP21
F-150 5.0L,
Mustang 5.0L		 C 1
3
2		 VBPWR
SIGRTN
CMP21
All other vehicles A 1
2		 VRSRTN
CMP21

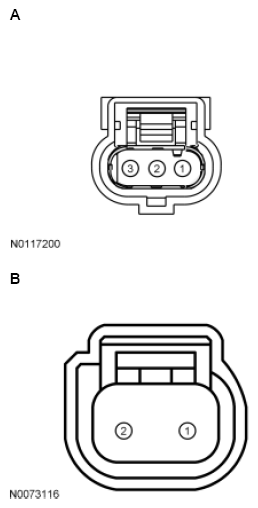

Fig 5: Identifying Camshaft Position 22 Sensor Connector Terminals
G09137495Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
F-150 3.5L A 3
2
1		 VBPWR
SIGRTN
CMP22
All other vehicles B 1
2		 VRSRTN2
CMP22
