PINPOINT TEST DI: Direct Fuel Injection Fuel Injector: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not apply battery voltage across the fuel injector circuits. Permanent damage to the fuel injector may result.

This pinpoint test is intended to diagnose the following:

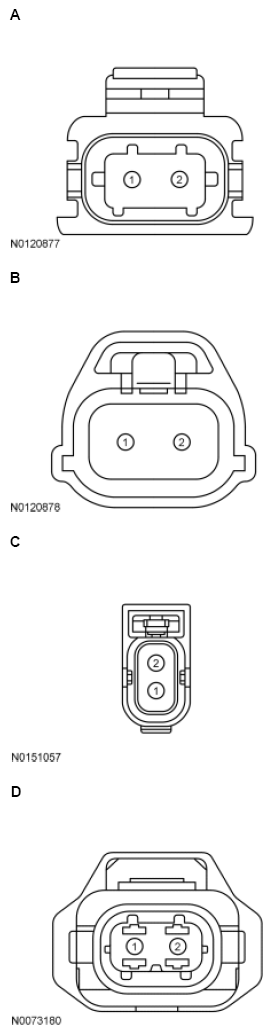

Vehicle Connector Pin Circuit
Escape,
Fiesta GTDI 1.6L,
Fusion 2.0L,
Fusion 1.6L,
MKZ,
Transit Connect		 A 2
1		 INJRTN
INJ
F-150,
Focus GDI 2.0L		 B 2
1		 INJRTN
INJ
Fiesta 1.0L,
Fusion 1.5L		 C 2
1		 INJRTN
INJ
All other vehicles D 2
1		 INJRTN
INJ
