Tables and Graphs
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2014 Lincoln Navigator, 2014 Lincoln MKZ, 2014 Lincoln MKX, 2014 Lincoln MKT, and 2014 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
FRP SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
| Voltage | Pressure, MPa (gauge) | Pressure, psi (gauge) |
|---|---|---|
| 4.80 | 27.95 | 4054 |
| 4.50 | 26 | 3771 |
| 3.50 | 19.5 | 2828 |
| 2.50 | 13.0 | 1885 |
| 1.50 | 6.5 | 943 |
| 0.50 | 0 | 0 |
| 0.20 | -1.95 | -283 |
FRPT SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
| Voltage | Pressure (kPa) | Pressure (psi) |
|---|---|---|
| 4.5 | 482 | 70 |
| 3.9 | 413 | 60 |
| 3.4 | 344 | 50 |
| 2.8 | 275 | 40 |
| 2.2 | 207 | 30 |
| 1.6 | 138 | 20 |
| 1.1 | 69 | 10 |
| 0.5 | 0 | 0 |
FRPT SENSOR TEMPERATURE, VOLTAGE, AND RESISTANCE SPECIFICATIONS
| Temperature | Sensor | ||
|---|---|---|---|
| °C | °F | Volts | K Ohms |
| 100 | 212 | 0.47 | 2.073 |
| 95 | 203 | 0.54 | 2.405 |
| 90 | 194 | 0.61 | 2.800 |
| 85 | 185 | 0.70 | 3.273 |
| 80 | 176 | 0.80 | 3.840 |
| 75 | 167 | 0.92 | 4.524 |
| 70 | 158 | 1.06 | 5.351 |
| 65 | 149 | 1.21 | 6.356 |
| 60 | 140 | 1.38 | 7.584 |
| 55 | 131 | 1.56 | 9.091 |
| 50 | 122 | 1.77 | 10.949 |
| 45 | 113 | 1.99 | 13.252 |
| 40 | 104 | 2.23 | 16.123 |
| 35 | 95 | 2.48 | 19.720 |
| 30 | 86 | 2.74 | 24.253 |
| 25 | 77 | 3.00 | 30.000 |
| 20 | 68 | 3.26 | 37.332 |
| 15 | 59 | 3.50 | 46.745 |
| 10 | 50 | 3.73 | 58.911 |
| 5 | 41 | 3.95 | 74.745 |
| 0 | 32 | 4.13 | 95.501 |

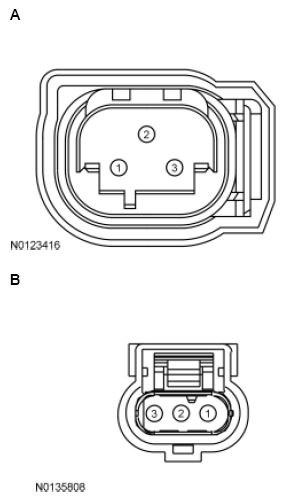

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Edge, Focus |
A | 2 1 3 |
FLP SIGRTN VREF |
| All other vehicles | B | 1 2 3 |
FLP SIGRTN VREF |

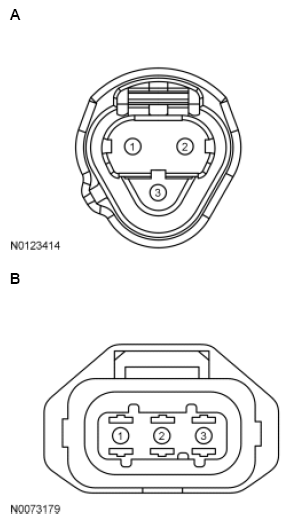

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150, Focus GDI 2.0L |
A | 2 3 1 |
FRP SIGRTN VREF |
| All other vehicles | B | 2 1 3 |
FRP SIGRTN VREF |
| Pin | Circuit |
|---|---|
| 3 | FRT (Fuel Rail Temperature) |
| 1 | FRP (Fuel Rail Pressure) |
| 4 | SIGRTN (Signal Return) |
| 2 | VREF (Reference Voltage) |
