Disassembly And Assembly: Halfshaft: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Constant Velocity Joint Grease (High Temperature) XG-5 |
WSS-M1C258-A1 |

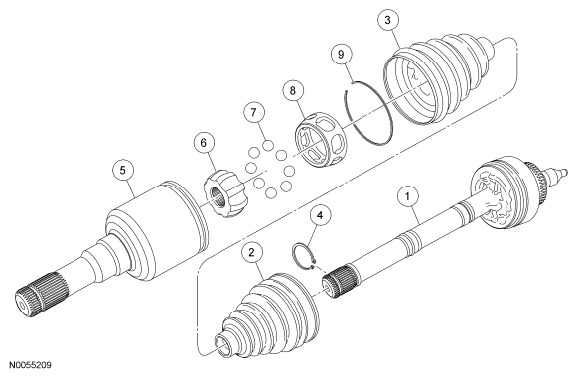

| Item | Part Number | Description |
|---|---|---|
| 1 | 3B436B | Outboard CV joint and interconnecting shaft assembly |
| 2 | 3A331A | Outboard CV boot |
| 3 | 3A331B | Inboard CV boot |
| 4 | 4B422 | Snap ring |
| 5 | 3B414 | Inboard CV joint housing |
| 6 | - | Inner race (part of 3B436 RH/3B437 LH) |
| 7 | - | Ball (8 required) (part of 3B436 RH/3B437 LH) |
| 8 | - | Ball cage (part of 3B436 RH/3B437 LH) |
| 9 | 3B426 | Retaining ring (part of 3B436 RH/3B437 LH) |
