Mode Select Switch (MSS)

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

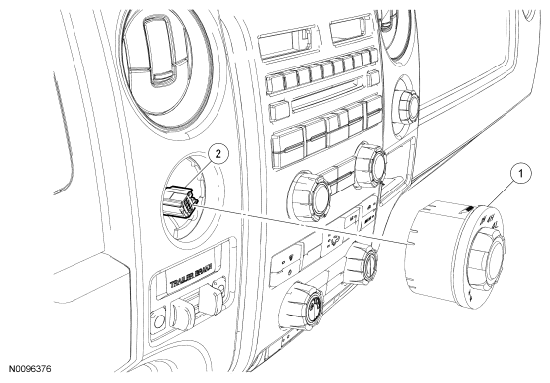

Fig 1: Identifying Mode Select Switch And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14B166	Mode Select Switch (MSS)
2	-	MSS electrical connector (part of 14401)

Carefully pry the Mode Select Switch (MSS) from the instrument panel.
Disconnect the MSS harness connector and remove the switch.
To install, reverse the removal procedure.
