Differential Carrier: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Adapter for Differential Housing Spreader 205-368 (T96T-4000-A) |
|
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |
|
| Holding Fixture, Transmission 307-003 (T57L-500-B) |
|
| Remover, Transmission Fluid Pump 307-397 |
|
| Slide Hammer 100-001 (T50T-100-A) |
|
| Spreader, Differential Carrier 205-001 (TOOL-4000-E) |
|
| Spreader, Differential Housing (Plate) 205-335 (T93P-4000-A) (RH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |

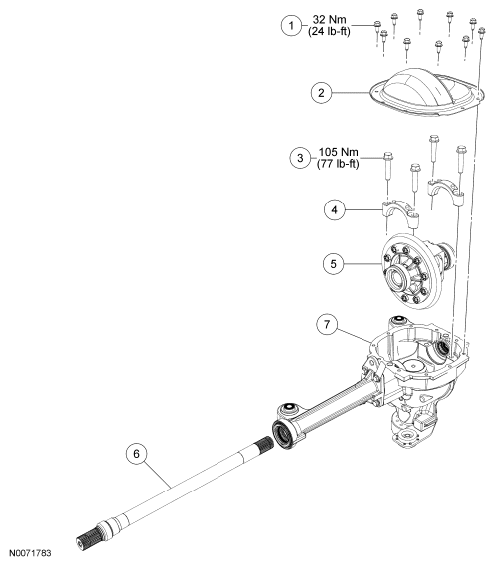

| Item | Part Number | Description |
|---|---|---|
| 1 | 390919 | Differential housing cover bolt (10 required) |
| 2 | 3N136 | Differential housing cover |
| 3 | - | Differential bearing cap bolt (part of 3A412) (4 required) |
| 4 | - | Differential bearing cap (part of 3A412) (2 required) |
| 5 | 3C202 | Differential assembly |
| 6 | 3A380 | Intermediate axle shaft |
| 7 | 3A412 | Differential housing |
